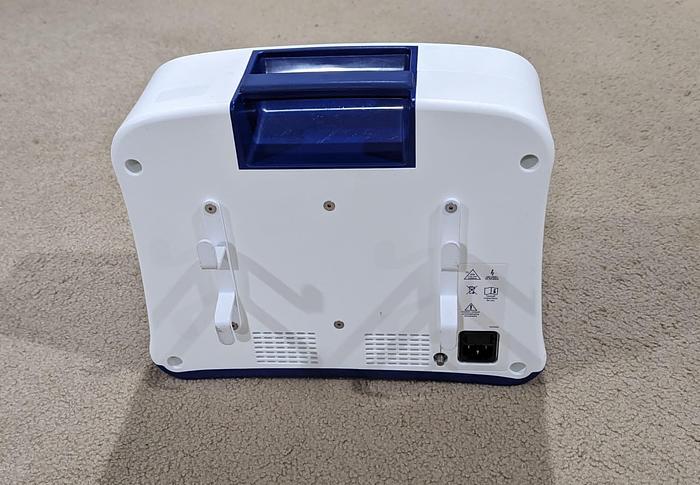

MEDTRONIC RFG3

The Medtronic RFG3 generator (also known as the ClosureRFG generator) is an electrically-powered, noninvasive medical device designed to generate radiofrequency (RF) energy for the thermal ablation and coagulation of non-cardiac tissues, typically used in procedures for conditions like superficial vein reflux.

Key Features and Specifications

• Function: Generates radio-frequency electrical current to create controlled heat for precise, focal tissue ablation. It provides controlled feedback that monitors intravascular heat in real time to automatically regulate power delivery.

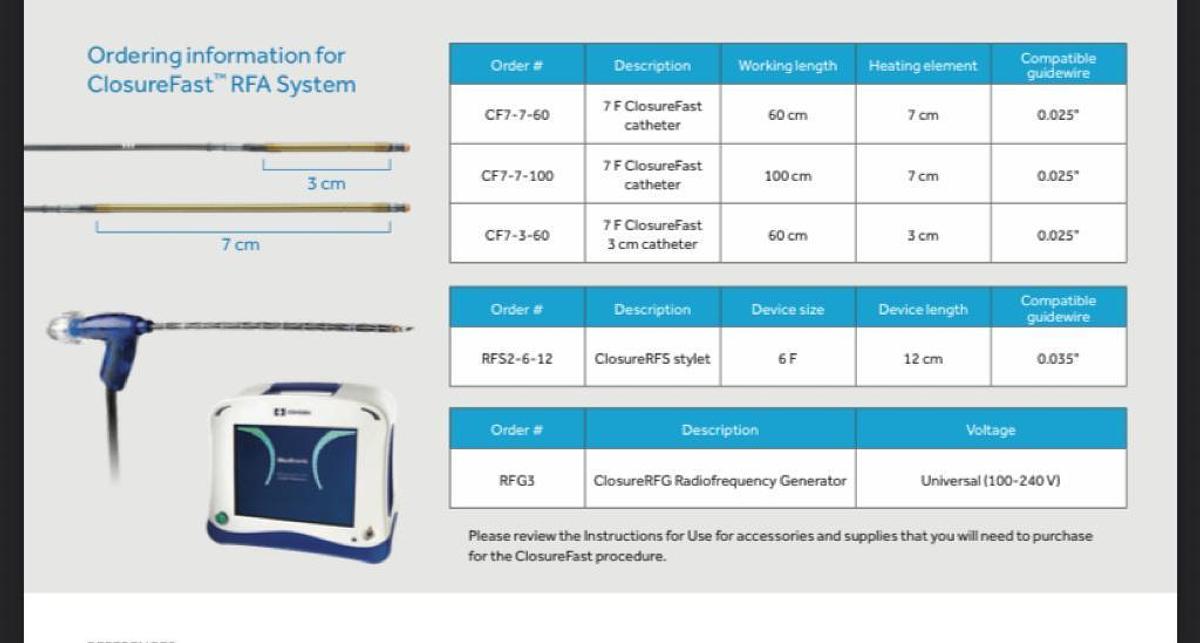

• Intended Use: Primarily used with compatible RF catheters, such as the Medtronic ClosureFast catheters and ClosureRFS stylets, for procedures like the treatment of chronic venous insufficiency (CVI).
• Technology: Utilizes advanced radiofrequency technology for optimal tissue coagulation and cutting capabilities.
• User Interface: Features an intuitive interface and touchscreen display for easy operation.
• Design: Compact and durable design suitable for clinical environments.
• Electrical Specifications:Operating range: 100 V to 240 VAC, 50 Hz to 60 Hz.
• RF Signal Frequency: 460.8 kHz.
• Power: Range of 0.1 - 40 W.
• Temperature Range (Operation): 10° C to 40° C (50° F to 104° F).
