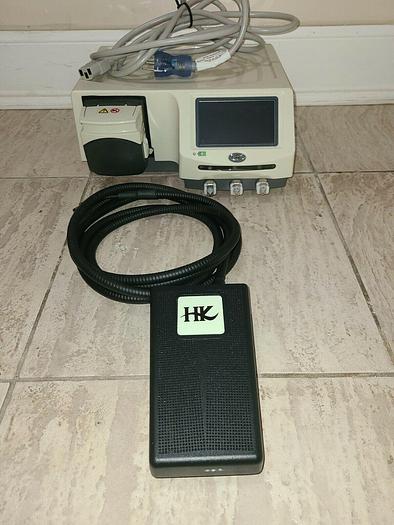

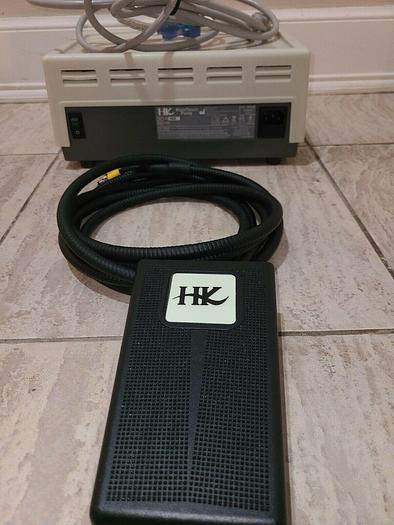

HK Surgical Klein Touch Pump (KTP) w/Foot Pedal *NEW PUMP HEAD & SW UPGRADE*

The HK Surgical Klein Touch Pump (KTP) with foot pedal is designed to efficiently deliver tumescent anesthesia, enhancing patient comfort and reducing procedure time. The device features a new pump head and a software upgrade to the latest revision, installed by the OEM. This model provides precision with .01 rate increments and can be controlled via the LCD touch screen or one of the three foot pedal ports. It is powered by a low maintenance brushless motor, ensuring reliability and smooth operation. With a flow rate of up to 1000 mL/min, the Klein Touch Pump offers flexibility in its operational modes including toggle, persistent, and trigger. It operates on a universal voltage range of 100-240 VAC, compliant with hospital power standards. The device maintains optimal performance within a relative humidity range and an operating temperature between 4°C to 40°C. The unit's design accounts for safety with Class I, Type B protection against electric shocks. This robust pump weighs 8.4 lbs and measures 11 x 10 x 5 inches, making it a compact choice for medical facilities. It includes dual foot switches with 12 ft hoses, which are air activated, enhancing user convenience during procedures. Although it has no liquid ingress protection, the pump is built for safe and efficient medical use, meeting the necessary safety standards.

HK Surgical Klein Touch Pump (KTP) w/Foot Pedal

*OEM INSTALLED NEW PUMP HEAD (CURRENT NON-BAR CODE TYPE)

*SOFTWARE UPGRADE TO CURRENT REV. D

The Klein Touch Pump is an essential device designed specifically to expedite the delivery of tumescent anesthesia. The Klein Touch Pump delivers high volumes of tumescent anesthesia, therefore maximizing patient comfort and reducing physician infiltration time. The Klein Pump operates on any voltage worldwide.

Description

The Klein Touch Pump is an essential device designed specifically to expedite the delivery of tumescent anesthesia. The Klein Touch Pump delivers high volumes of tumescent anesthesia, therefore maximizing patient comfort and reducing physician infiltration time. The Klein Touch Pump features an LCD touch screen and precision rate with .01 rate increments. The Klein Touch Pump can be operated from LCD screen or from one of the three foot pedal ports. The Klein Touch Pump operates with a low maintenance brushless motor.

KLEIN TOUCH PUMP SPECIFICATIONS:

Flow rate: Up to 1000 mL/min depending upon tubing set, connected cannula and pump speed

Mode of operation: Toggle, Persistent, Trigger

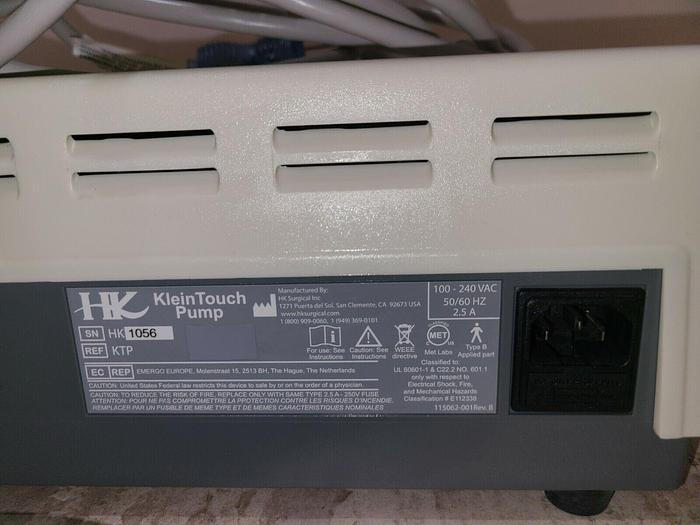

Power Requirements: 100-240 VAC, Inlet Hospital power cord IEC 320,

Use only cordage terminated in hospital grade plugs to ensure power grounding.

AC Frequency- 50 to 60 HZ single phase.

Leakage Current within IEC 60601-1

Operation Humidity (non-condensing): 80% relative humidity up to 31C and linearly

decreases to 50% relative humidity at 40C

Storage & Shipping Temperature: -20 to 50C

Protection against electric shock: Class I, Type B

Dual Foot switches with 12 ft hose, air activated

Liquid ingress rating: IPO No protection
