STI Streamline 5 C-Arm Imaging Table

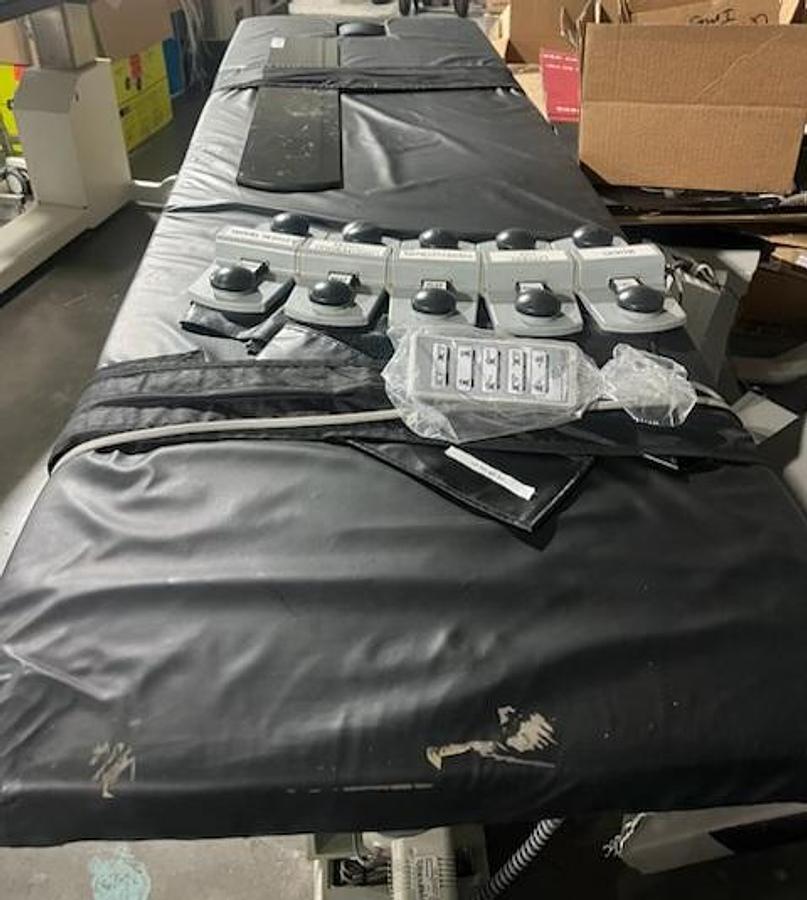

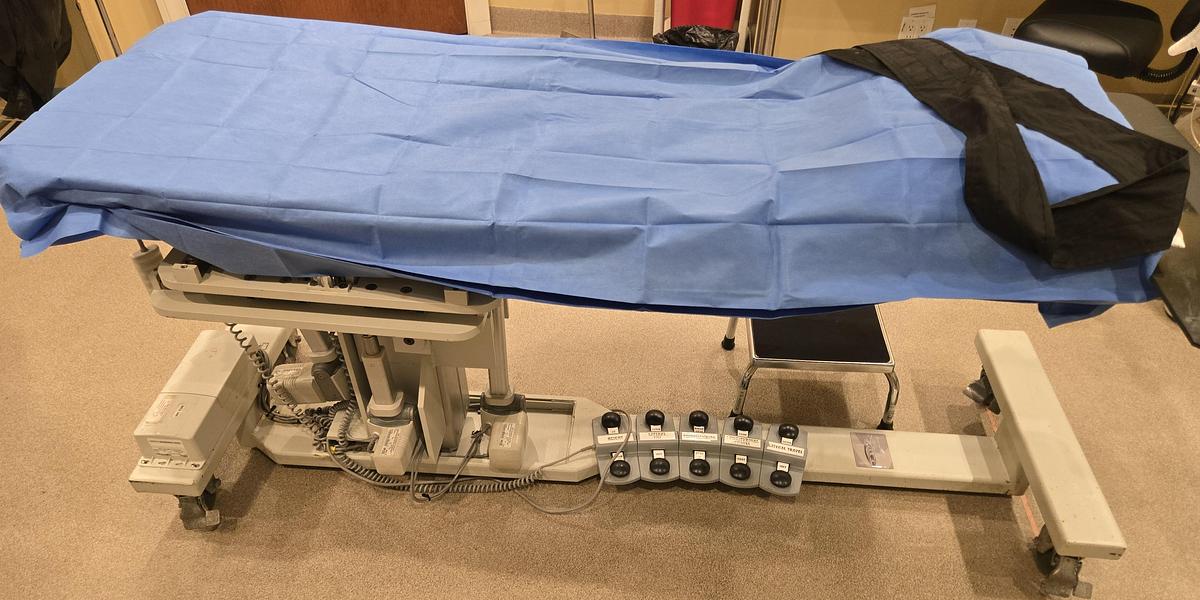

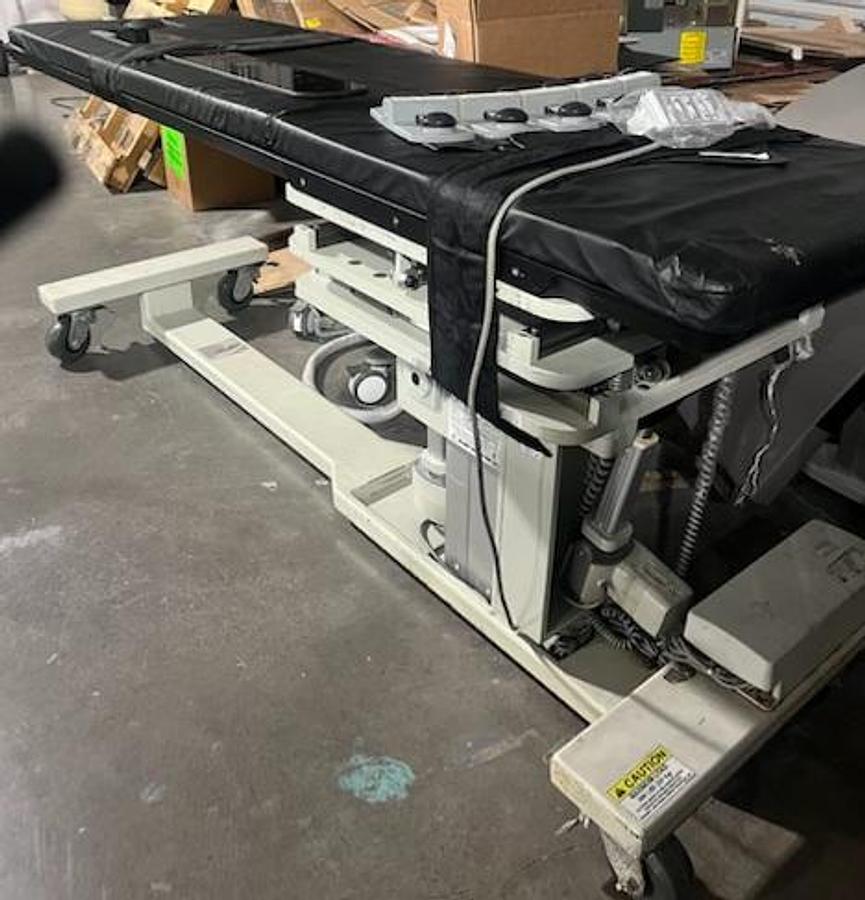

The STI Streamline 5 C-Arm Imaging Table, Model SL-5, is designed for optimal use in pain management procedures. This used table provides a vibration-free and quiet operation, ensuring precise positioning. Its radiolucent tabletop, free of cross-members, allows full visualization under fluoroscopy. The table features a carbon fiber, diving board style design, which facilitates easy C-arm access. Motorized adjustments include a height range from 33.5" to 43.5", lateral tilt of +/- 17°, Trendelenburg tilt of +/- 13°, and both longitudinal and lateral travel of 10". It also includes a facial cut-out and two patient straps for secure positioning. The table is capable of accommodating patients with a weight capacity of up to 500 pounds, thanks to a high-end actuator motor. With a lightweight construction and high-quality wheel locks, the STI Streamline 5 is both easy to maneuver and stable in use. The table's 84" length and 24" width provide ample space, eliminating the need for additional arm boards. It comes with a hand control for intuitive adjustments, including height, tilt, and travel functions. This unit is designed to enhance efficiency and patient comfort in medical settings.

The STI Streamline 5 Motion C-Arm Imaging Table Model SL-5 is perfect for pain management. Each diving board style table comes with a pair of patient straps, a facial cutout (which can be filled), and a hand control. Pain procedures often require precise positioning. These c-arm tables are quiet and vibration free leaving the end user worry free. Additionally, the radiolucent tabletop does not have any cross-members, allowing for full visualization under fluoro.

Motor Driven Motion:

1. Height Adjustment: 33.5" to 43.5"
2. Lateral Tilt: (+/-) 17°
3. Trendelenburg: (+/-) 13°
4. Longitudinal Travel: 10" (+/- 5")
5. Lateral Travel: 10" (+/- 5")

Features:

• Carbon fiber, diving board style for easy C-arm access
• An 84″ length can accommodate even the tallest of patients
• A 24″ top eliminates the need for arm boards
• 2" thick, high quality patient comfort pad

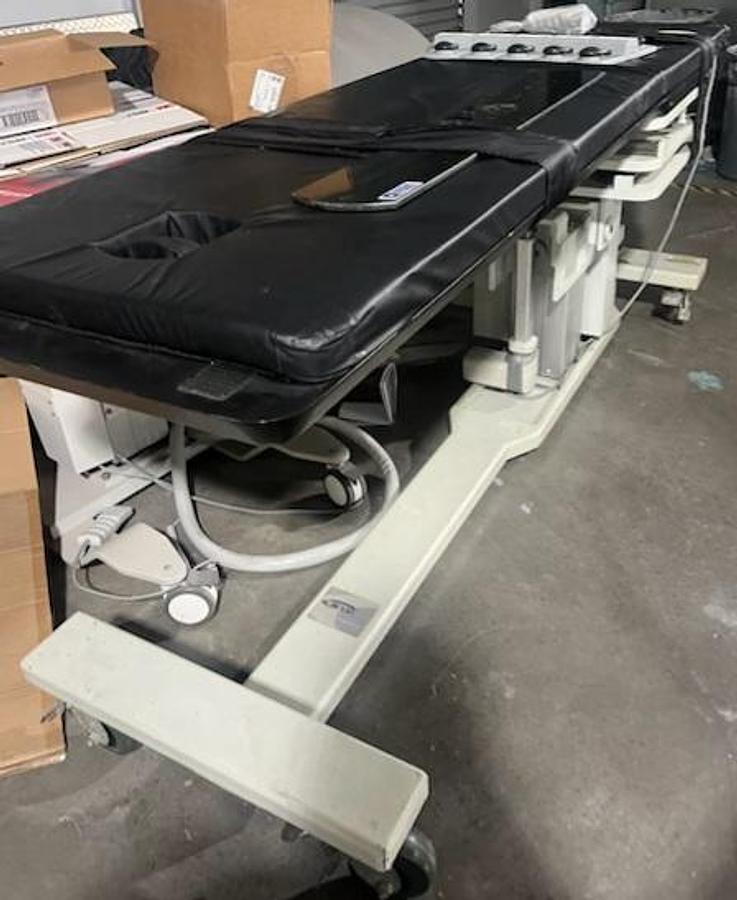

• Facial cut-out for prone procedures
• (2) patient straps
• Long, I-style base
• Extreme low position makes boarding patients fast, easy, and safe
• Simple to use, high-quality wheel locks

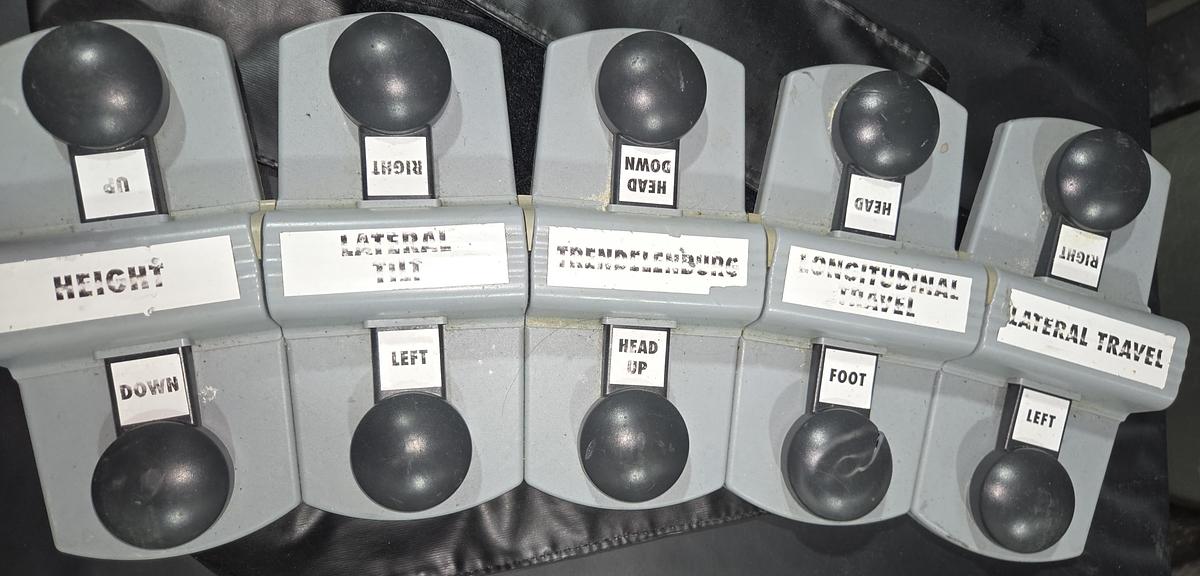

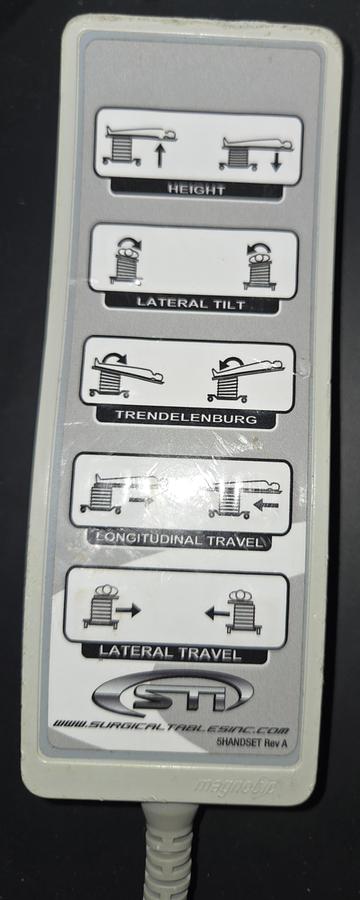

• Come with a hand control that features
• Height Buttons: support raising and lowering the tabletop
• Lateral Tilt Buttons: control the lateral angle of inclination
• Trendelenburg Buttons: control the angle of inclination of the head end
• Longitudinal Travel Buttons: move the table top in the longitudinal direction
• Lateral Travel Buttons: controls table movements in the lateral direction

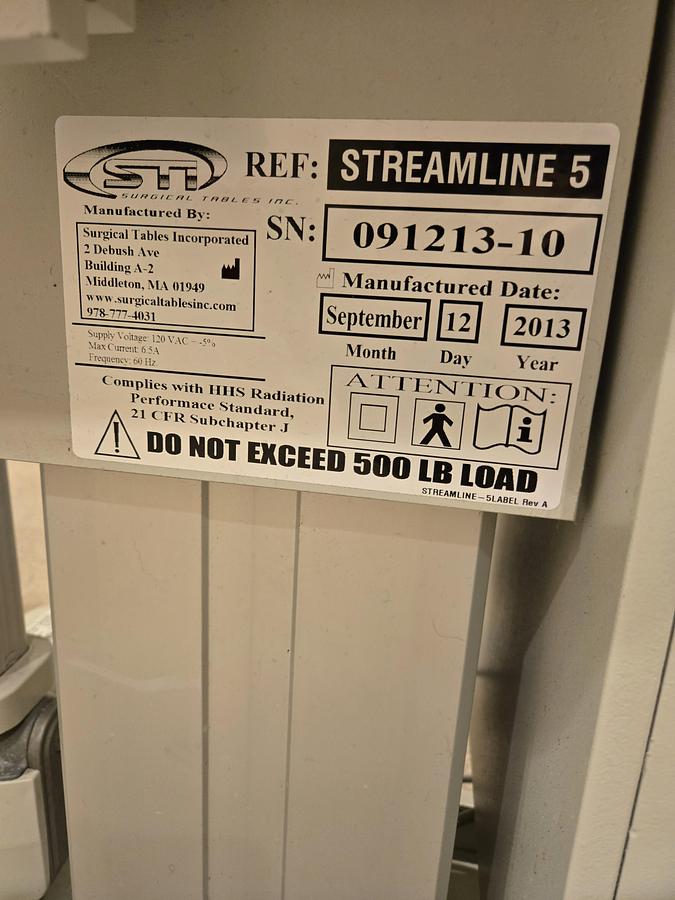

• Large patient capacity – high-end actuator motor supports 500-pound loads
• Light weight – easy to physically move the table within the room or from room to room
