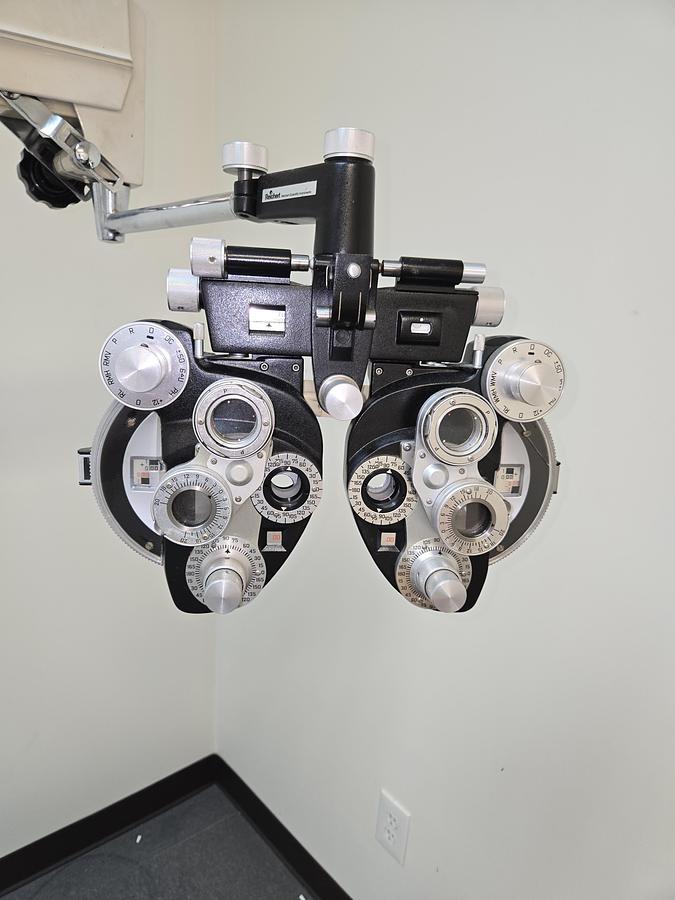

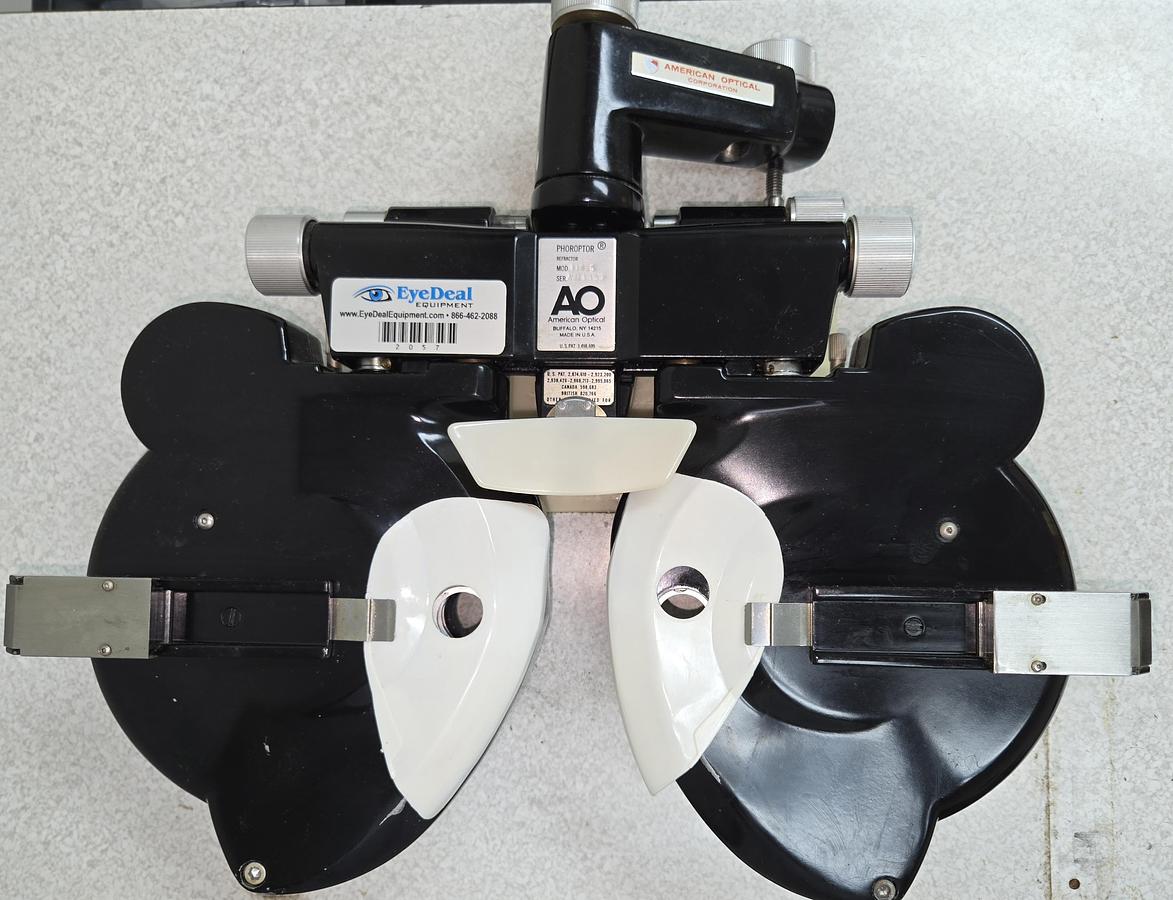

American Optical 11625 Phoroptor Refractor

American Optical 11625

Phoroptor Refractor

The American Optical (AO) 11625 Phoropter (also referred to as the Reichert 11625 Ultramatic RX Master Phoroptor, as Reichert acquired AO’s refracting equipment division) is a classic manual refracting instrument used in optometry and ophthalmology for precise eye examinations.

Specifications:

Sphere Power:Range: -19.00D to +16.75DSteps: 0.25D increments

Additional: +0.12D sphere included in the auxiliary dial

Cylinder Power:Range: 0.00D to 6.00DSteps: 0.25D increments

Minus cylinder configuration (Model 11625)

Cylinder Axis:

Range: 360 degrees (double 0 to 180 degrees scale)

Graduations: 5-degree increments

Cross Cylinder:

Standard: ±0.25D

Prism:Range: 0 to 20

Prism Diopters Graduations: 1 Prism Diopter increments

Precision-geared rotary prism for accurate interpolation of small prism diopters

Pupillary Distance (P.D.):

Range: 48 mm to 75 mm

Graduations: 1 mm increments

Vertex Distance:

Standard: 13.75 mm (normal)

Extended Range: Graduations extend range by 6 mm

Reading Distance:

Range: 5 to 28 inches

Scales: Includes centimeter and diopter scales

Auxiliary Dial: 10 lenses plus 2 open apertures for customizable configurations

Included Accessories: ±0.25D flip cross cylinder+1.50D retinoscopic lenses

Additional Features:

Design and Build: Constructed with corrosion-resistant materials and no plastic components for durability. Bi-loupe turret in a single plane for a wider overlapping field of view during testing. Concentric cylinder power and axis controls for easier, more accurate operation. Synchronized cross-cylinder measurement for faster results with reduced error. Optically additive lenses, allowing practitioners to add powers together to achieve effective power.

Ergonomics and Usability: Known for its smooth dial rotation, minimal mechanism play, and precise, solid control knob clicks.Face shields can be washed, soaked in alcohol, or boiled for sterility.

Applications: Used for comprehensive eye exams to assess visual acuity, refractive errors (myopia, hyperopia, astigmatism), and binocular vision.Suitable for various clinical settings, including mobile eye clinics and outreach programs due to its sturdy, portable design.
