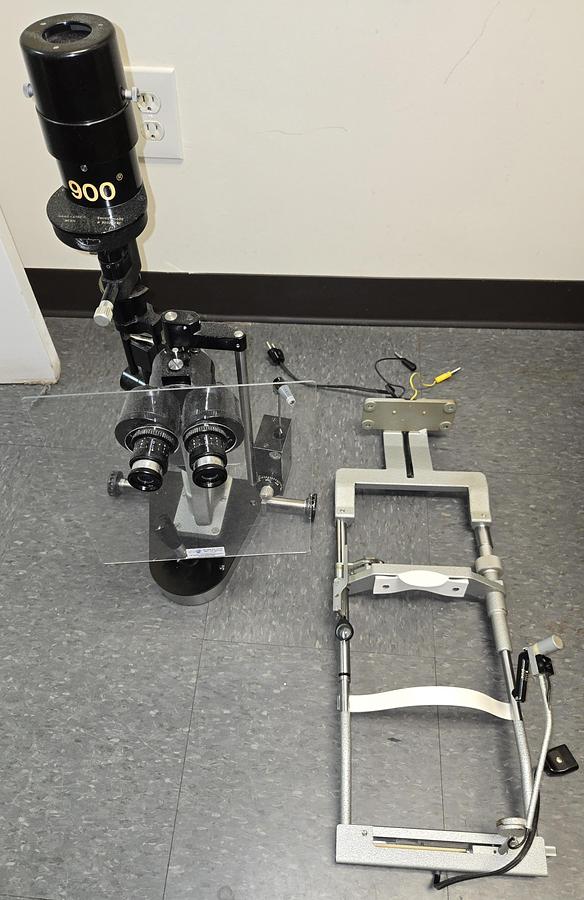

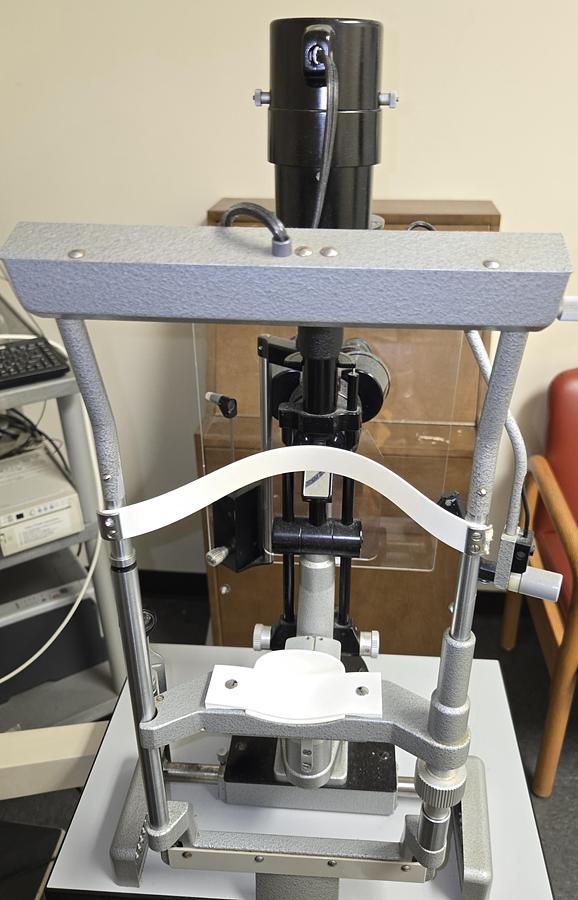

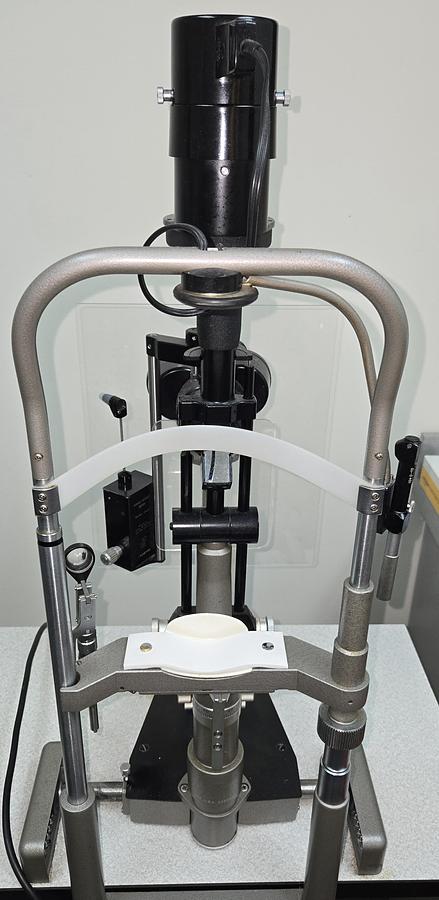

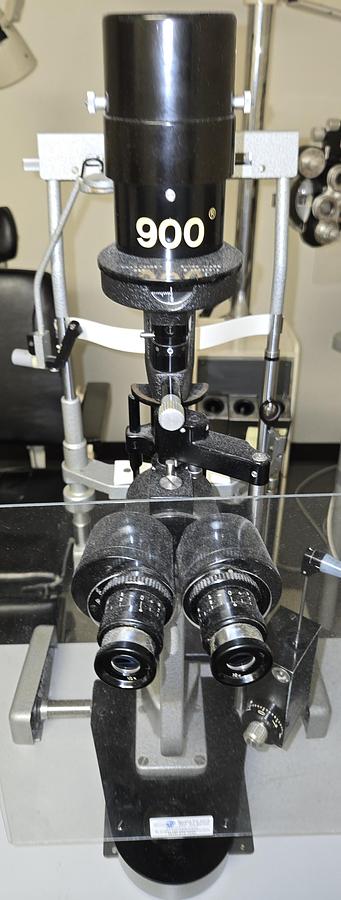

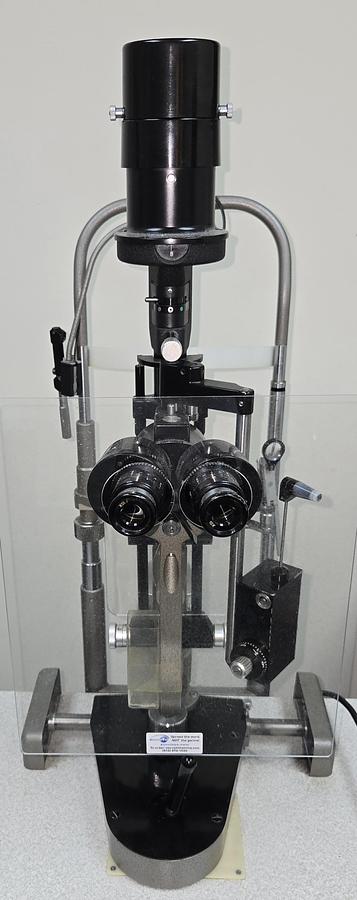

Haag-Streit BM900 Slit Lamp

Haag-Streit BM900

Slit Lamp

The Haag-Streit BM 900 LED Slit Lamp is a high-precision ophthalmic instrument designed for anterior and posterior segment examinations.

Specifications:

Illumination System Light Source: LED (replaces traditional tungsten bulb for enhanced longevity and efficiency).

Slit Width: 0–8 mm, continuously adjustable.

Slit Length: 1–8 mm, continuously adjustable, with fixed apertures.

Illumination Field Diameter: Ø 8, 5, 3, 2, 1, 0.2 mm, includes a test mark with fixation star.

Slit Image Rotatability: ±90°.

Swiveling of Slit Illumination to

Microscope Axis: Horizontal ±90°, vertical 0–20°.Filters: Blue, red-free (green), and grey (10%).

Brightness: Brightest and most homogeneous LED-powered slit, with up to 600,000 Lux illumination.

Tilting Mechanism: Allows tilting for enhanced posterior segment observation.

Energy Efficiency: LED reduces power consumption by 60% compared to tungsten bulbs, with a lifespan up to 150 times longer.

MicroscopeType: Convergent, stereoscopic Kepler microscope.

Stereo Angle: 13°.

Standard Magnifications: 10x and 16x (switchable via lever).

Optional Magnifications: 25x and 40x with optional eyepieces.

Eyepiece Magnification: 10x (optional 25x).

Range of Adjusting Eyepieces: +8 to –8 diopters.

Inter-Pupillary Distance (PD): Adjustable from 54–94 mm for comfortable viewing and reduced eye fatigue.

Observer-to-Patient Distance: Short, optimizing ease of use and reducing eye fatigue.

Instrument Base Operation:

Single-handed, 3-dimensional control via patented joystick for smooth horizontal and vertical movements.

Spatial Adjustment: 100 mm (length), 100 mm (side), 30 mm (height).

Cross Slide Mechanism: Allows effortless and precise movements without wrist or finger strain.

Power Supply Model: Haag-Streit PS LED.

Voltage: 100–240 V, 50–60 Hz operating frequency.

Working Temperature: 10°C to 35°C.

Dimensions (L × W × H):

290 mm × 332 mm × 700 mm (312 mm × 305 mm × 700 mm in some sources).

Net Weight: 11.4 kg (without power supply, headrest, or optional accessories).

Applications:

Ideal for general ophthalmologists and optometrists for examining anterior and posterior segments.

Suitable for contact lens fitting, tonometry (glaucoma diagnosis), and detailed visualization of cornea, iris, lens, and retina.

Supports high-quality imaging for documentation and analysis, particularly with the Fundus Module 300.

Notes:

The BM 900 is renowned for its optical excellence, bright illumination, and durability, with over 100,000 units used globally by eye care professionals.LED illumination eliminates the need for frequent bulb replacements, unlike older tungsten models, reducing maintenance costs.The slit lamp is designed for clinical settings and is not portable.
