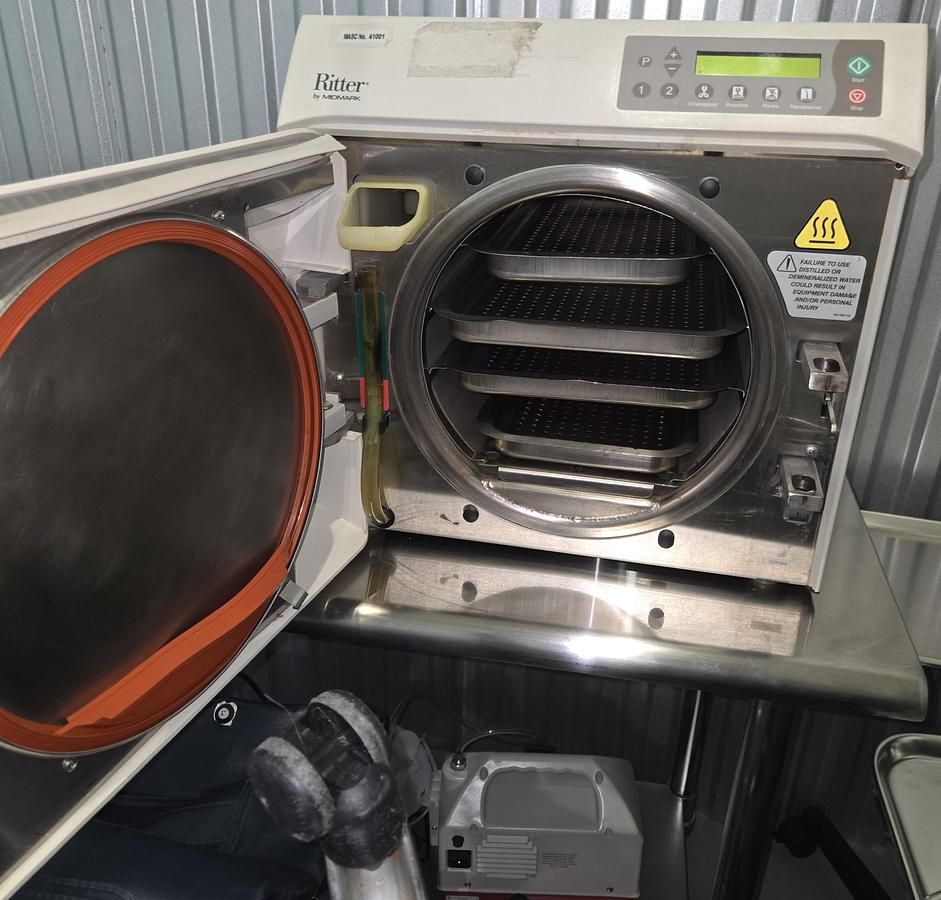

MIDMARK Ritter M11 UltraClave Automatic Sterilizer

MIDMARK Ritter M11 UltraClave Automatic Sterilizer

The MIDMARK Ritter M11 UltraClave Automatic Sterilizer is a reliable choice for efficient sterilization in medical or dental settings. This used model, M11-022, is renowned for its large chamber capacity, offering ample space for instruments and packs. Its fully automatic operation simplifies the process, ensuring consistent results with minimal manual intervention.

Key features include a spacious 11-inch chamber and an intuitive control panel, which makes programming and monitoring cycles simple. The M11 is designed for ease of use and maintenance, with a door that opens automatically at the end of the cycle to facilitate quick drying. Its efficiency in handling various loads makes it an ideal solution for busy practices that demand consistent performance.

Features:

Large Chamber Size: 11" diameter x 18" depth (28 cm x 45.7 cm), with a 6.5-gallon (24.6 liters) usable volume, making it one of the largest standard countertop sterilizers, ideal for larger packs and instruments.

Automatic Operation: Features an intuitive LCD display with simple prompts for easy cycle selection (unwrapped, pouches, packs, or handpieces). The door opens automatically after the cycle to dissipate steam and speed up drying.

Pre-Programmed Cycles:

Unwrapped: 132°C (270°F) for 3 minutes

Pouched: 132°C (270°F) for 5 minutes

Packs: 121°C (250°F) for 30 minutes

Handpieces: 132°C (270°F) for 6 minutes Programmable controls allow customization of time (3–90 minutes), temperature (230–275°F), dry time (0–60 minutes), and vent speed.

Steam-Flush Pressure Pulse System: Ensures effective steam penetration for thorough sterilization, capable of passing air removal tests used in more complex vacuum autoclaves.

Safety and Convenience: Includes real-time alerts for low water or improper door closure, front-access fill/drain ports, and a microprocessor control system for precise operation.

Trays: Comes with four instrument trays (two large: 9" x 15" x 1.1"; two small: 6.6" x 15" x 1.1") and a stainless steel tray rack. A 6-slot pouch rack is included, with additional racks available.

Accessories: Compatible with thermal printers (first and second generation) and data loggers for cycle documentation.

Specifications:

Dimensions: 23.8" L x 17.8" W x 17.8" H (with printer); minimum countertop area: 17.8" x 21.0".

Weight: 99 lbs (44.9 kg); shipping weight: 131 lbs (59.4 kg).

Water Reservoir: 1.4 gallons (5.3 liters).

Electrical: 115 VAC, 50/60 Hz, 15 A (1425 W heater) or 230 VAC, 50/60 Hz, 10 A (1500 W heater). Requires a dedicated circuit.

Safety Standards: UL 61010-1, IEC 61010-2-040, CAN/CSA C22.2 No. 61010, ASME Boiler and Pressure Vessel Code compliant.

Benefits:

Efficiency: Large chamber reduces the need for multiple cycles, saving time. Automatic door opening and pre-programmed cycles simplify operation.

Reliability: Time-tested design with minimal complexity for consistent performance. Passes spore testing and includes a 90-day warranty on parts and labor for refurbished units.

Applications: Ideal for dental practices, small clinics, laboratories, and nail salons due to its large capacity and ease of use.
