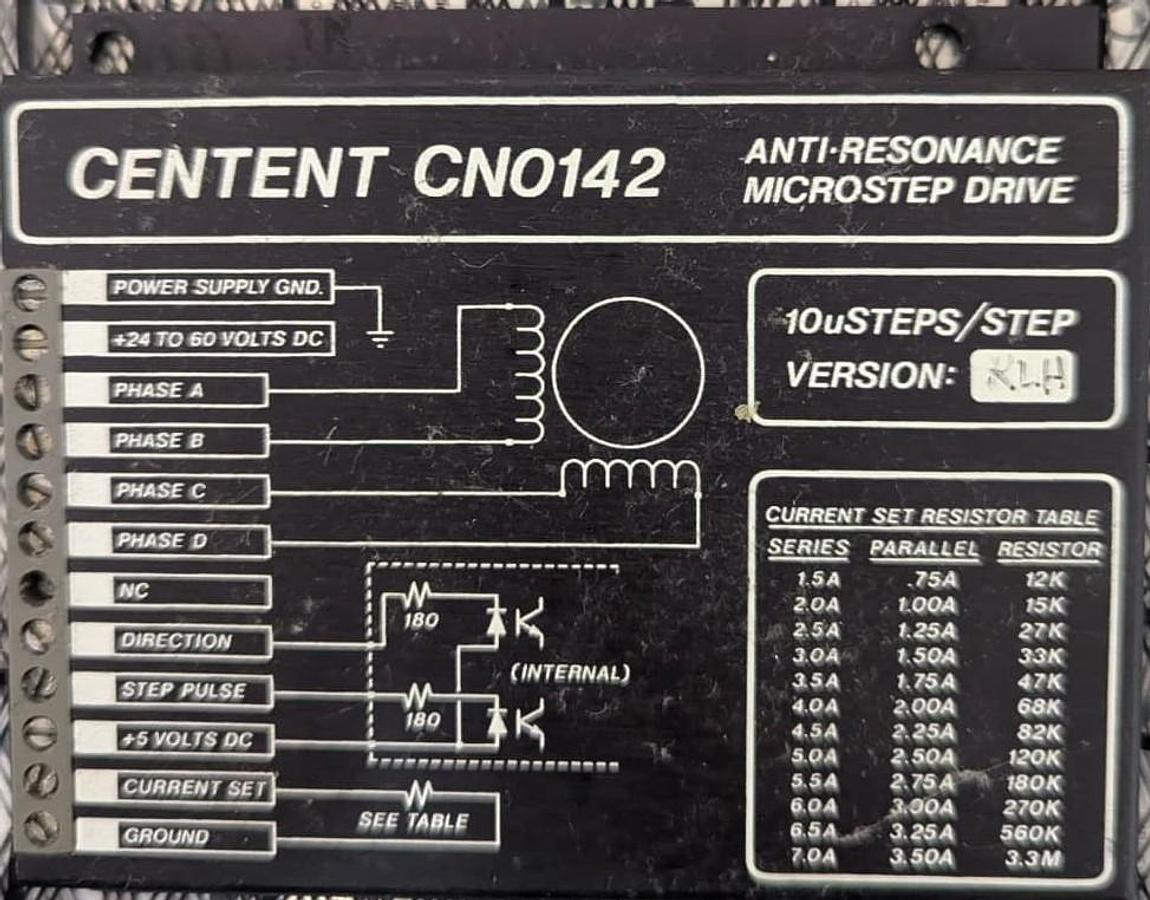

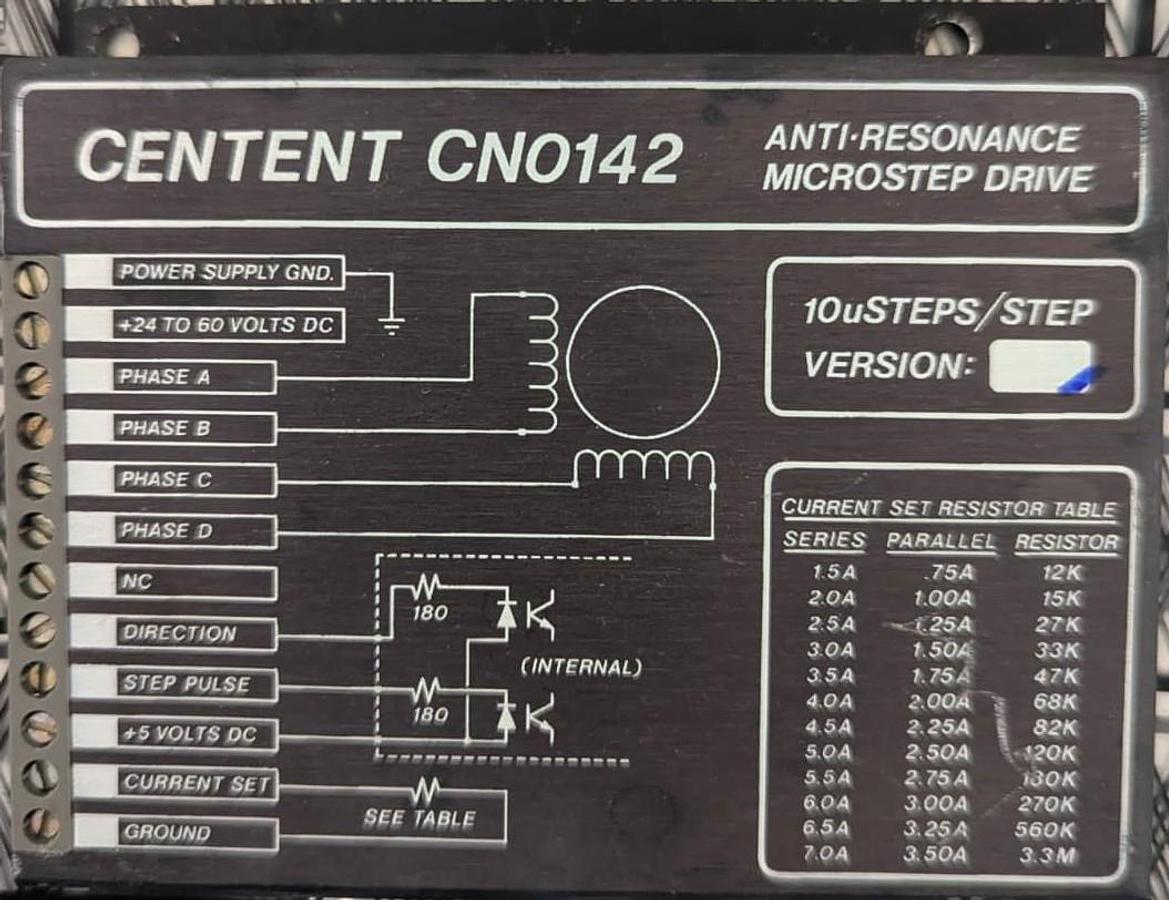

GE Lunar LNR5801 CENTENT CN0142 Anti-Resonance Microstep Drive

The Centent CN0142 (also known by the GE Lunar Part Number LNR5801) is an anti-resonance microstep drive used in GE Lunar bone densitometry systems. It is a specific industrial component, and the technical specifications have been compiled from the manufacturer's product page and related manuals.

Technical Specifications

Manufacturer: Centent Company

Compatibility: GE Lunar DPX, Prodigy, and iDXA bone densitometer systems

Power Supply Voltage: 24 VDC to 60 VDC

Phase Current (Adjustable): 0.75 Amps to 3.6 Amps

Microstep Resolution: 10 microsteps per full step (fixed)

Switching Frequency: 20 kHz to 60 kHz (chopper frequency)

Features: Anti-resonance circuitry, opto-isolated Step and Direction inputs, short-circuit and over-temperature detection

Output Stage: All N-channel MOSFET

Connectivity: Pin-out is compatible with other CENTENT drives (CN0143, CN0162, CN0165)
