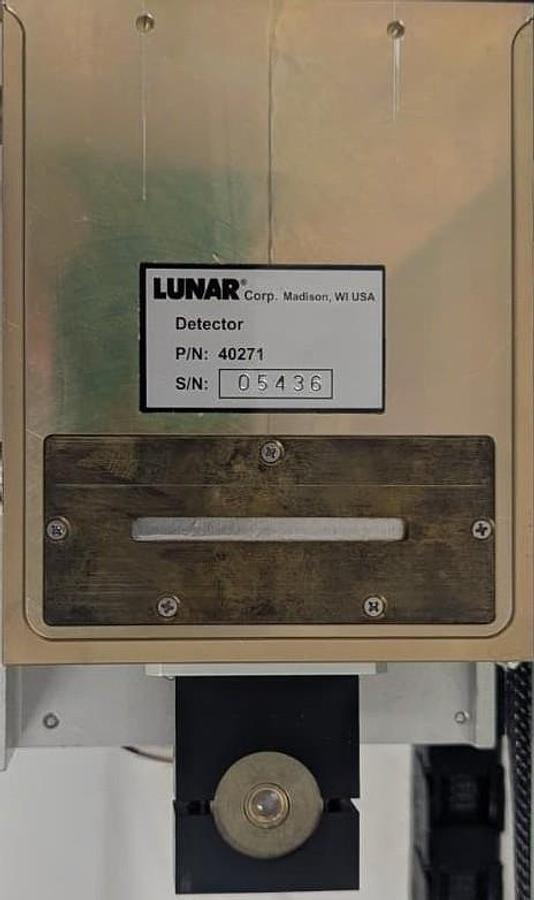

GE LUNAR Prodigy LNR40271 Detector

The GE Lunar Prodigy 40271 is a specific detector component (LNR40271) for the GE Lunar Prodigy bone densitometry system, known for bone density (BMD) and body composition analysis, featuring advanced options like Vertebral Fracture Assessment (VFA) for fracture risk, using a narrow fan-beam technology, and requiring specific environmental conditions, with general specs including high patient weight limits (around 350 lbs/159kg), low radiation (0.4-0.8 µGy), and a modular design with parts like a 216-channel detector assembly (010-1606).

Key Specifications & Features (System Level):

• Technology: Narrow-angle fan-beam densitometry.
• Applications: BMD (AP Spine, Femur, Forearm), Body Composition, Vertebral Fracture Assessment (VFA).
• Patient Weight: Up to ~350 lbs (159 kg) for whole body scans.
• Radiation Dose: Low, typically 0.4 - 0.8 µGy.
• Software: Runs on Windows-based platforms (Win10 for newer systems).
• Environmental: Needs 18°C-27°C (65°F-81°F) and 20-80% humidity.

Detector Specifics (LNR40271):

• The LNR40271 is a key detector assembly.
• It works with other modules like the 216 Channel 2mm Detector Assembly (010-1606).
• Requires a 15V power supply (101-0032).

Advanced Features:

• DVA (Dual Energy Vertebral Assessment): Identifies vertebral fractures for better risk assessment.
• Body Composition: Estimates visceral adipose tissue (VAT).
