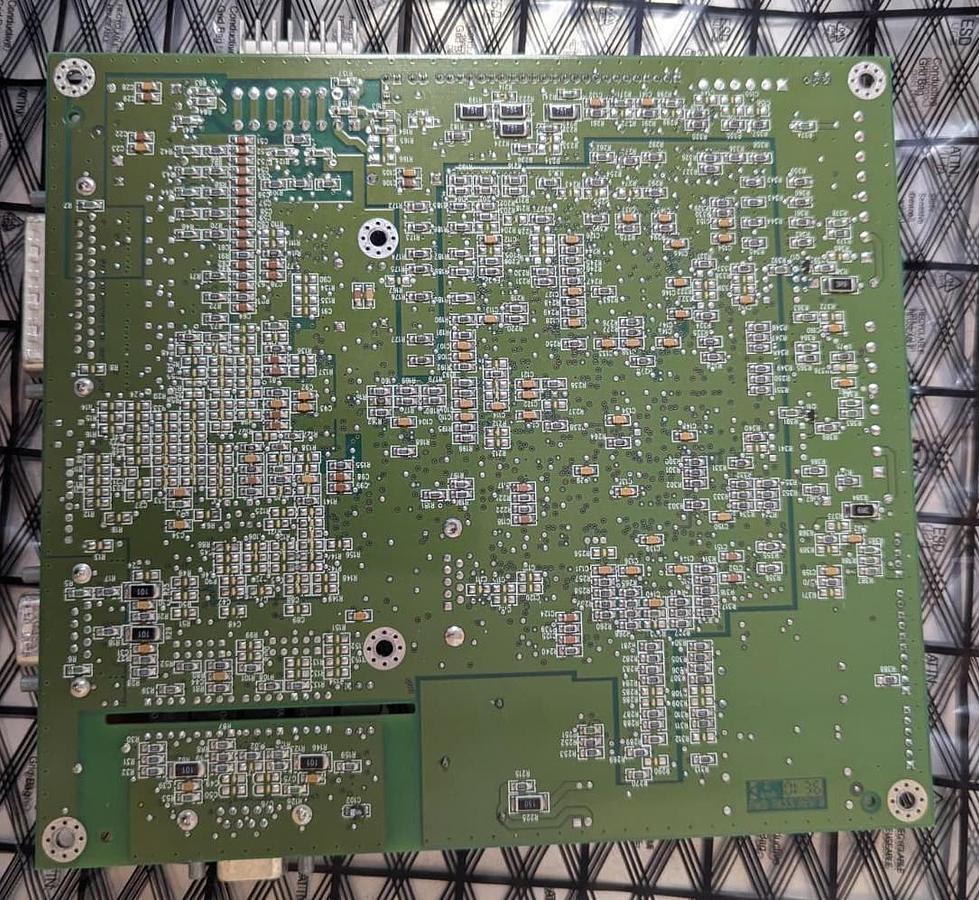

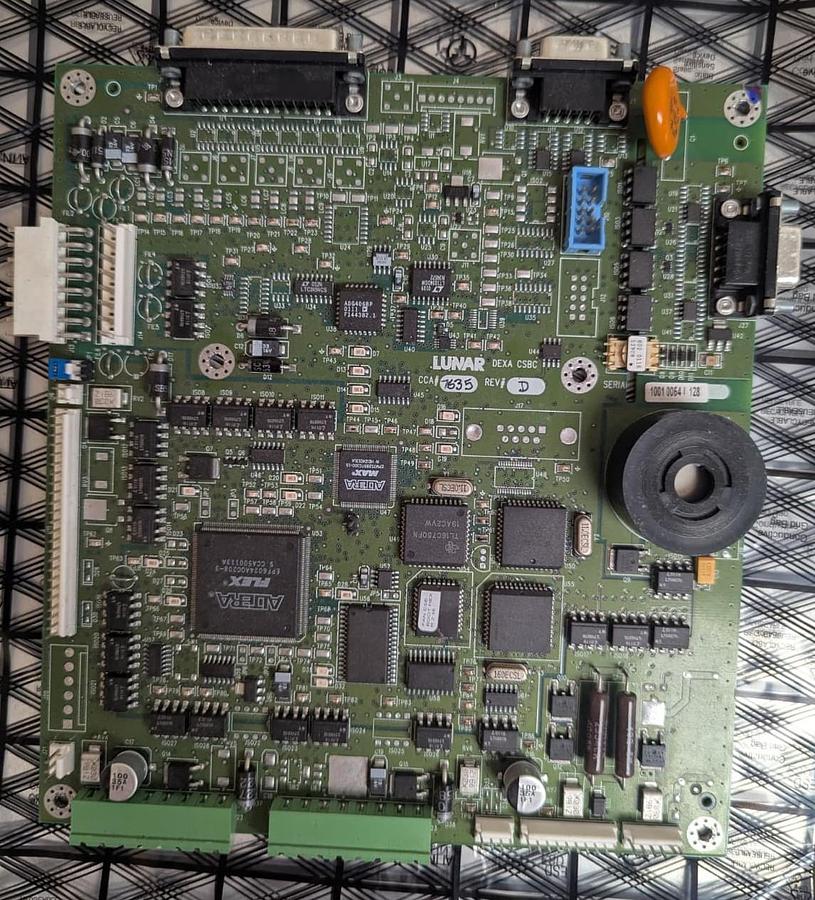

GE LUNAR Prodigy 7635 REV. D CSBC Board

The GE Lunar Prodigy 7635 Rev D CSBC (Combined Single Board Controller) is a core control board for GE DEXA bone densitometry systems, built on an 8-layer FR-4 epoxy glass laminate, featuring an Intel 80C251 microcontroller, 1K RAM, diagnostics LEDs, runs at 16MHz, and uses an Altera EPF6024AQC208-3 FPGA for logic, managing overall scanner operation, especially the scan table's movement and control. This board serves as the brain for coordinating the physical movements and data acquisition in the GE Prodigy DEXA scanner, ensuring precise patient positioning and scan execution.

Key Specifications & Features:

• Function: Controls the entire DEXA system, particularly the scan table.
• Material: FR-4 Epoxy Glass Laminate.
• Dimensions: 7.4" x 8.1" rectangular board.
• Processor: Intel 80C251 Microcontroller (16 MHz clock).
• Memory: 1K On-board RAM (No on-board ROM).
• Logic: Altera EPF6024AQC208-3 FLEX PLD for scanner logic.
• Indicators: Diagnostic LEDs for power, failsafe, etc..
• Components: Includes capacitors, transformers, transistors, etc.
• Compatibility: Used in various GE Prodigy models and other systems.
