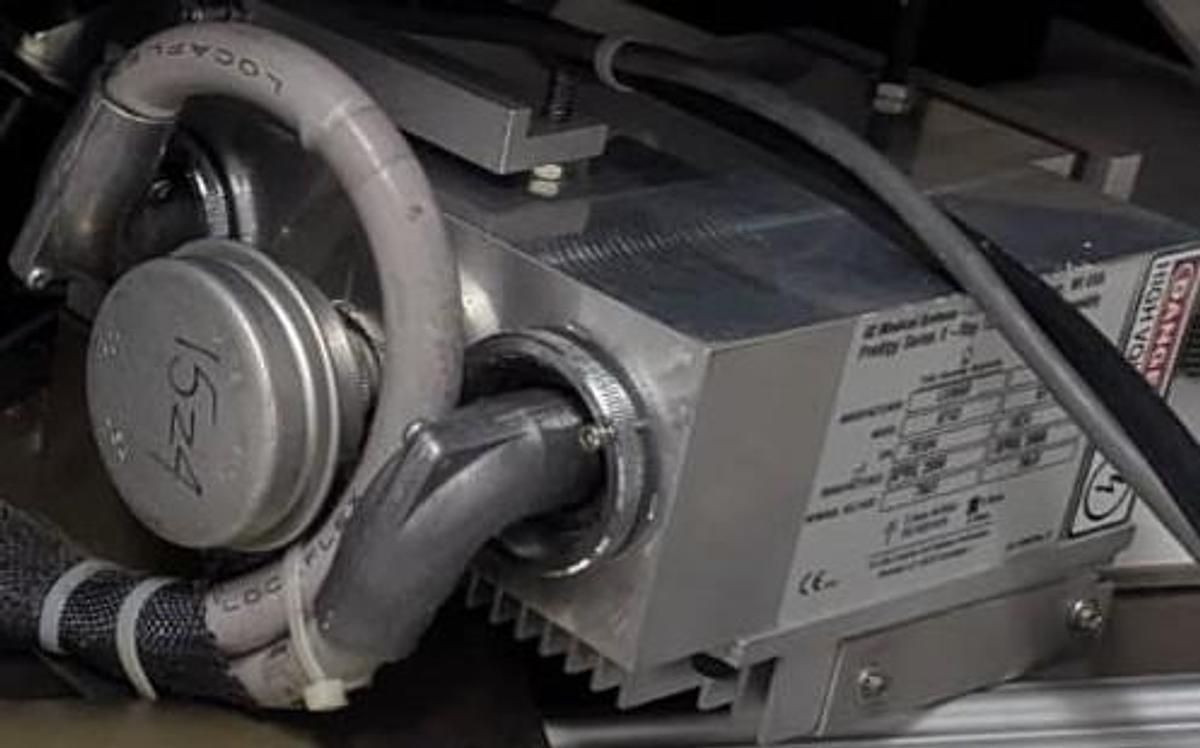

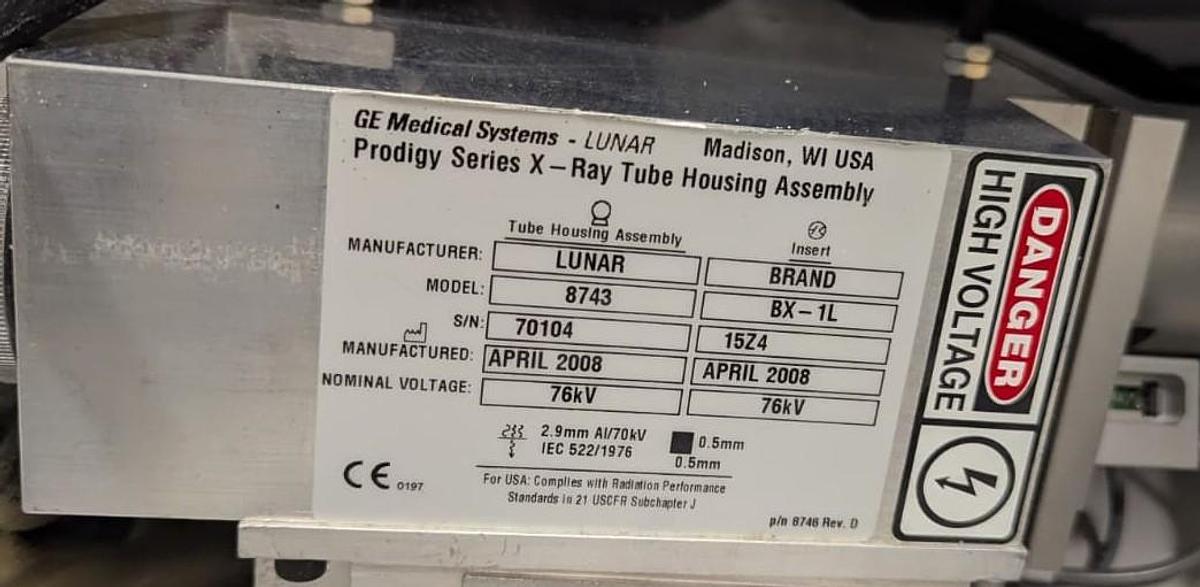

GE LUNAR Prodigy Series 8743 BX-1L Tube Assembly

The GE LUNAR Prodigy 8743 Tube Housing Assembly with a BX-1L insert is a key component for DEXA bone densitometry, operating around 76kV nominal voltage, designed for the GE Lunar Prodigy/DPX series, featuring a specific X-ray tube (Lunar 8743) and an integrated BX-1L insert, generally sold as a replacement part with specs like 23 lbs weight, 13"x13"x17" dimensions, and is crucial for generating the narrow-angle fan beam X-rays used in body composition analysis.

Key Specifications & Details:

• Manufacturer: GE (Lunar)
• System: Used in GE Lunar Prodigy/DPX Series DEXA scanners.
• Housing Model: 8743
• Tube Insert Model: BX-1L
• Nominal Voltage: ~76kV
• Function: Generates X-rays for body composition/bone density scans.
• Physical: Around 23 lbs, roughly 13"x13"x17" (dimensions can vary slightly).
• Filtration: Uses K-edge filters, creating two low-energy X-ray beams for precision.
