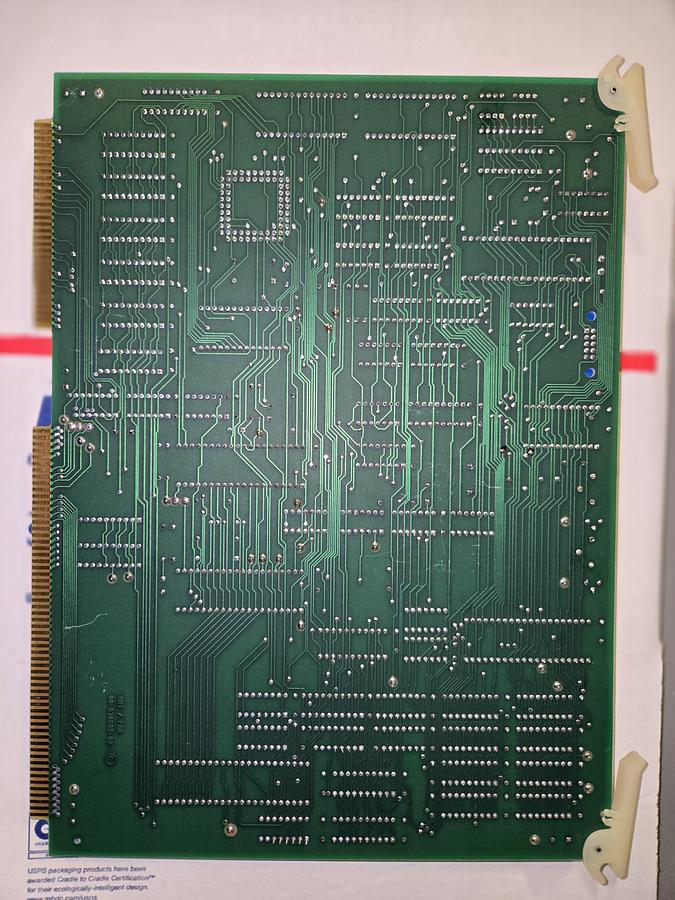

GE OEC 9400 ART/FAB Technique Processor Board 00-870592-02

The GE OEC 9400 ART/FAB Technique Processor Board (Part # 00-870592-02) is a core analog processing board for the OEC 9400 C-Arm, managing X-ray exposure factors (kVp, mA, time) for image quality, controlling ABS (Automatic Brightness Stabilization), camera gain, and interfacing with the generator and X-ray tube, enabling features like pulsed fluoro, fluoro boost, and image processing for general/orthopedic/vascular imaging.

Key Functions:

• Analog Control: Manages the analog signals for kVp, mA, and exposure time.
• Automatic Brightness Stabilization (ABS): Adjusts exposure factors dynamically for consistent image brightness.
• Image Processing: Handles functions like gamma correction, sharpening, and camera gain settings.
• Mode Control: Manages Normal, Boost, Pulsed Fluoroscopy, and Pulsed Fluorography modes.
