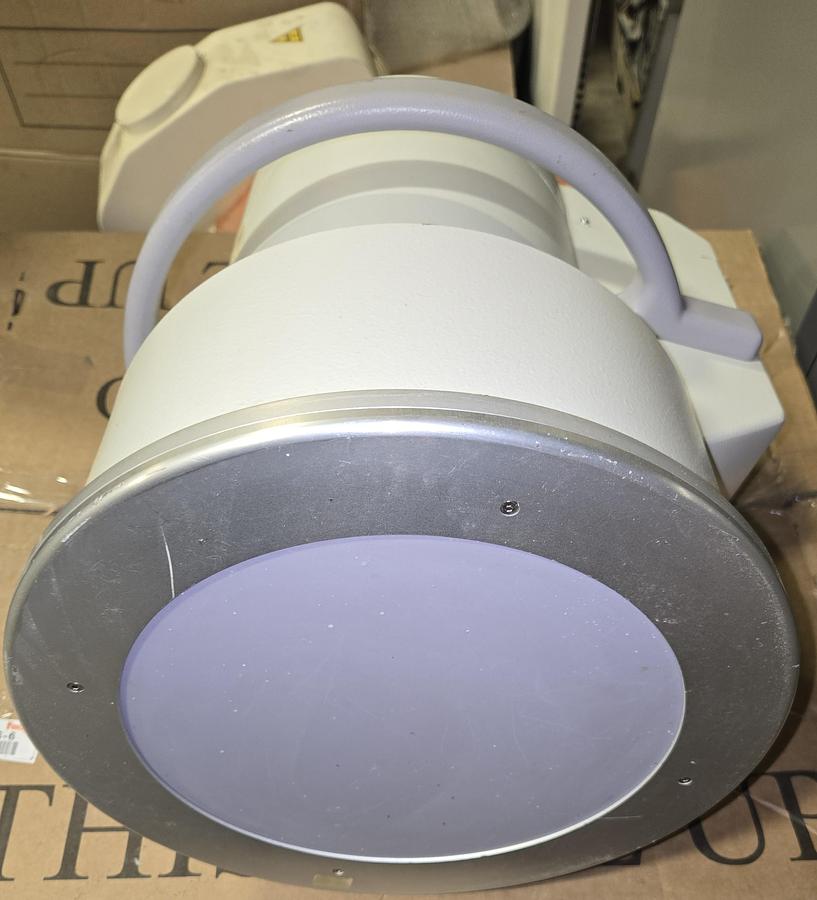

OEC 7700 TH9429 Image Intensifier (23/17cm)

The OEC 7700 C-arm system uses an image intensifier with the part number TH9429, which typically has a tri-mode input field of 23/15/11 cm (equivalent to 9″/6″/4.5″).

Key Details:

• Compatibility: The TH9429 image intensifier is compatible with the GE OEC 7700 C-arm mobile fluoroscopic X-ray machine.
• Size: The standard configuration for the OEC 7700 often uses a 23 cm (9-inch) tri-mode image intensifier. The specific size configuration mentioned in the prompt as 23/17 cm is less common in documentation, which more frequently lists the tri-mode options as 23/15/11 cm, but the part number TH9429 is correct for the OEC 7700 system.
• Function: The intensifier converts the X-ray pattern into a visible light image for the integrated high-resolution CCD camera.
• System Type: The OEC 7700 is known for its compact, one-piece design, which integrates the image intensifier and monitor into a single unit, making it highly maneuverable.
