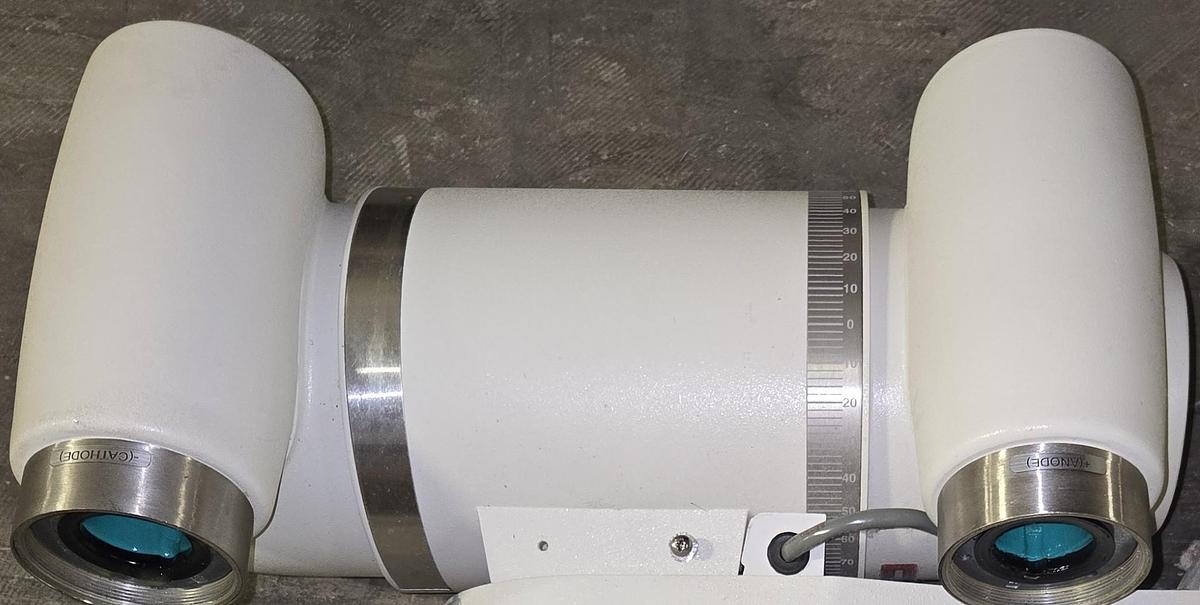

Varian A-142 B100 TUBE

The Varian A-142 B100 refers to an X-ray tube insert (A-142 model) installed within a specific X-ray tube housing (B-100 model). The exact specifications depend on the specific configuration of the A-142 insert (e.g., focal spot sizes, power rating).  The B-100 housing is designed for Varex Imaging (formerly Varian) rotating anode inserts with a target diameter of 71 mm (2.8 inches) and 80 mm (3.0 inches).

B-100 Housing Specifications:

• IEC Classification: Class 1
• Weight (Approximate): 17.5 kg (38.5 lbs)
• Stator Cord Length: 0.9m (3 ft)
• Mounting: Trunnion or Port Plate
• Compatible Inserts: Designed for 71mm and 80mm rotating anode targets

A-142 Insert Specifications:

• Anode Type: Rotating anode
• Target Diameter: 71 mm or 80 mm
• Focal Spot Sizes: Typically dual focus, common sizes for similar models might be 0.4 mm and 1.5 mm, or 1.0 mm and 3.0 mm (sizes vary widely).
• Anode Input Power: Power ratings depend heavily on the specific insert configuration and cooling, often rated per IEC 60613 standards.
• Filament Characteristics: Refer to specific emission curves on the product datasheet for current and voltage limits.
