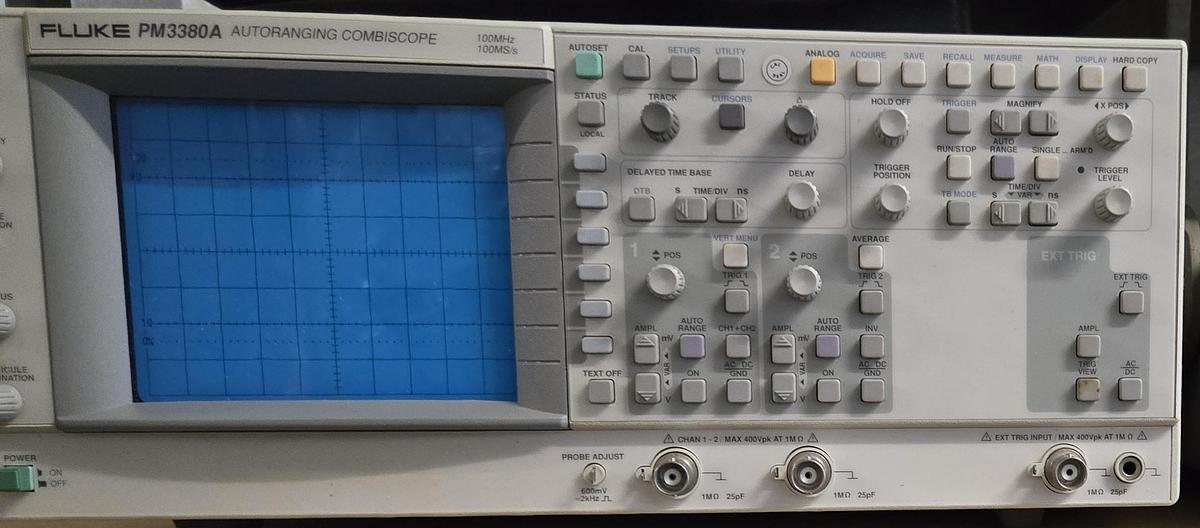

FLUKE PM3380A Oscilloscope

The Fluke PM3380A is a 100 MHz auto ranging CombiScope, which is a combined analog and digital storage oscilloscope. It is an older model from the Philips/Fluke line and is available in both 2-channel and 4-channel (2+2) configurations.

Specifications:

• Bandwidth100 MHz (analog and digital)
• Sample Rate100 MS/s single shot, up to 10 GS/s repetitive
• Number of Channels2 channels (standard) or 4 channels (2+2 configuration)
• Input Impedance1 MΩ
• Display Type Graphical display (CRT)
• Power SupplyAC100 - 240V
• Weight8.3 kg (approx. 18 lbs)

Features:

• Autoset & Autoranging: The instrument can automatically adjust horizontal and vertical settings for ease of use.
• Cursor Measurements: Allows for precise on-screen measurements using cursors.
• Built-in Measurements: Provides various automated measurements, including Vpp, Vmax, Vmin, Vavg, Vrms, Frequency, Period, Pulse Width, Rise Time, Fall Time, Duty Cycle, Delay, and Phase.
• Trigger Modes: Includes Auto, Single Edge, and TV (NTSC/PAL/SECAM/HDTV) trigger modes.
• Interfaces: Equipped with an IEEE488 interface for remote control.
• Analog/Digital Capabilities: Operates as both an analog and digital storage oscilloscope, providing flexibility for different signal types and analysis needs.
