FLUKE Biomedical TNT 12000 Test Tools (12000D - 12000WD -12000 DoseMate)

The Fluke TNT 12000 is a series of wireless X-ray test tools and radiation dosimeters used for quality assurance in diagnostic imaging systems, including radiographic, mammographic, dental, fluoroscopic, and CT systems.

Fluke TNT 12000 X-Ray Test Tools Overview

• The TNT 12000 system is designed to provide accurate, reliable, and simple testing of X-ray imaging parameters in a single exposure.
• Key Measurements: The device measures kilovoltage peak (kVp), dose, dose rate, time, and half value layer (HVL) in a single exposure.
• Wireless Operation: It uses the ZigBee wireless communication protocol, allowing the user to perform tests and read results up to 100 feet away from the detector, often without leaving the radiation-shielded area.
• Portability: The compact and lightweight design of the wireless detector and display enhances portability and allows for quick setup.
• Ease of Use: The tool defaults to the last application used and allows for customizable, savable measurement protocols, streamlining repetitive testing procedures.
• Software Integration: The system works with Excel software for data storage and reporting, and is compatible with Ansur test automation software for standardized testing protocols.

Available Configurations

The TNT 12000 is available in different configurations to suit various needs:

• TNT 12000D: This configuration includes a wireless detector and a handheld display unit. The display shows all measured results, identification information, and battery level.
• TNT 12000WD: This configuration provides a wireless detector only, designed for dedicated control and display via a laptop computer.
• TNT 12000 DoseMate: This model uses ion chambers for precise dose measurements and can be used with existing external ion chambers for comprehensive testing of various imaging systems.

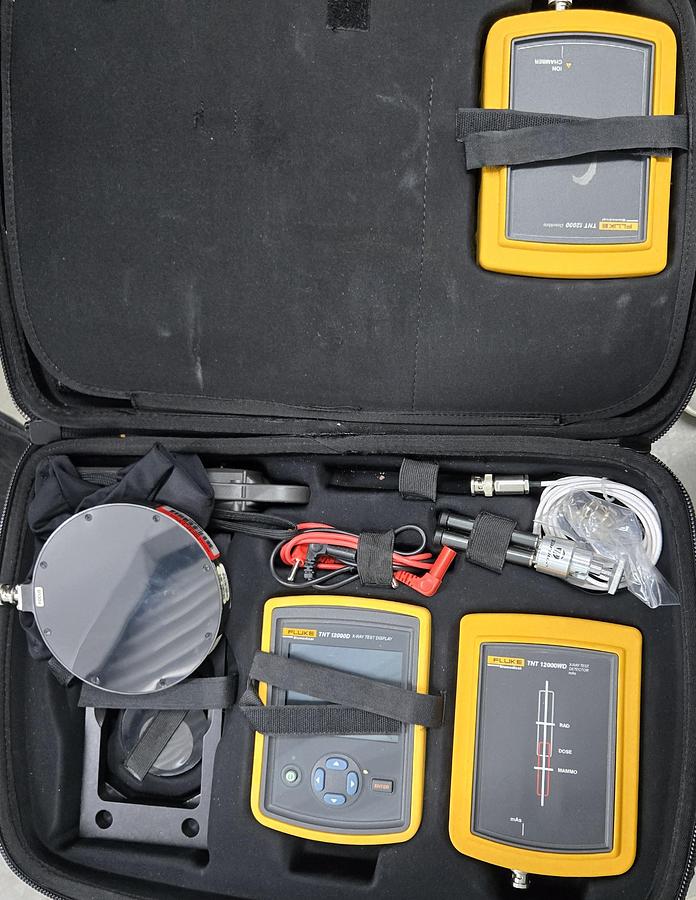

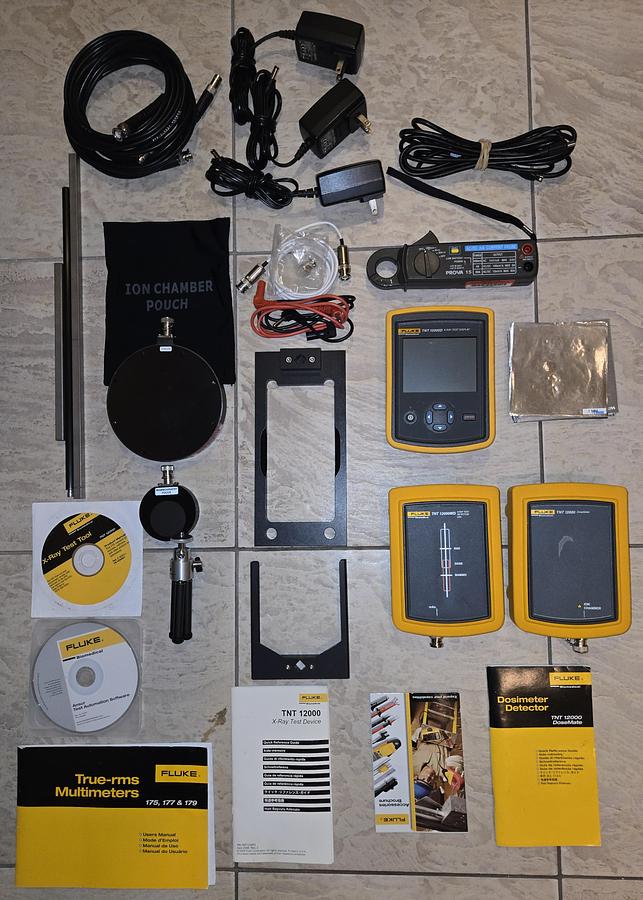

INCLUDED:

• TNT 12000D
• TNT 12000 DoseMate
• TNT 12000WD
• PROVA 15 AC/DC mA CURRENT PROBE
• (2) Ion Chambers
• TRIAX Ion Chamber Cable
• Assorted High Purity Copper Plates
• (3) AC Adapter/Charger
• USB PC Interface Cable
• Ansur Test Automation Software
• TNT 12000 User Manual
• Calibration Certificate

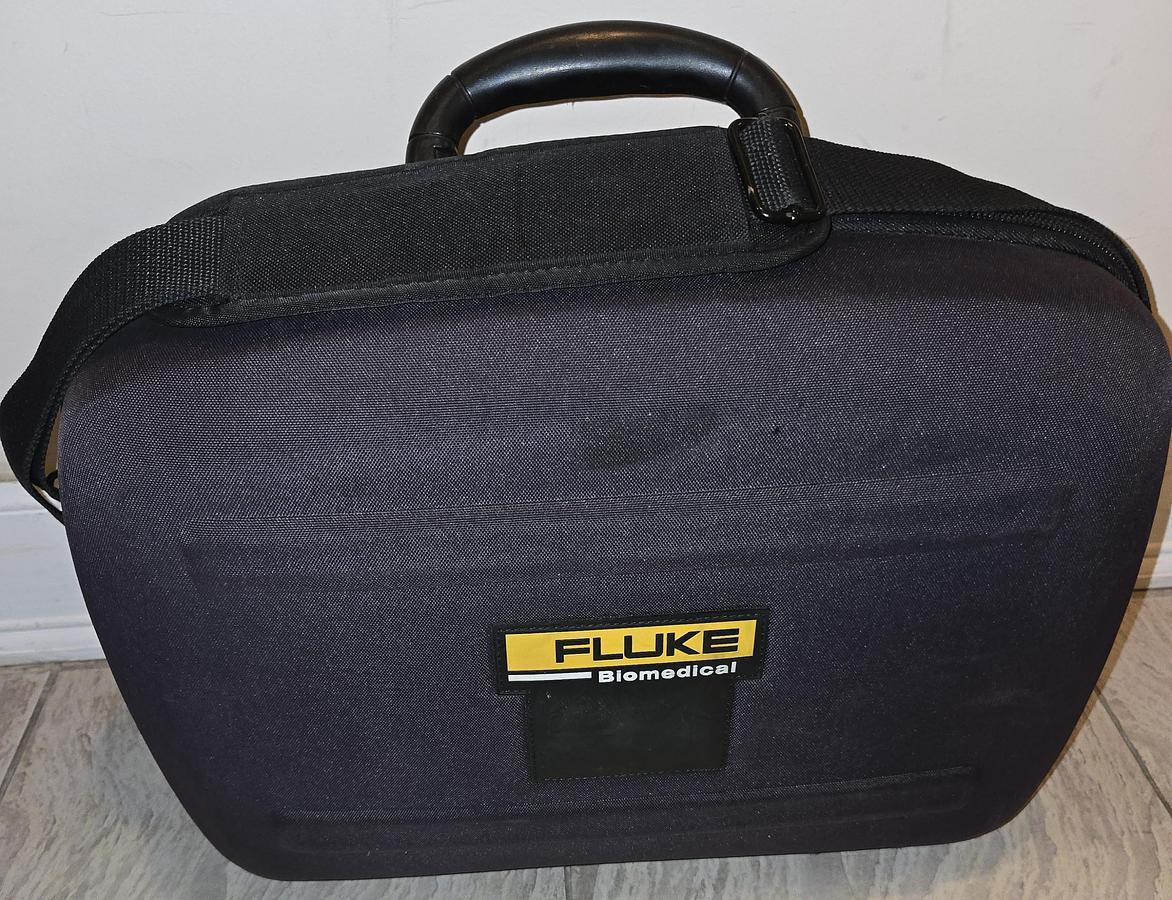

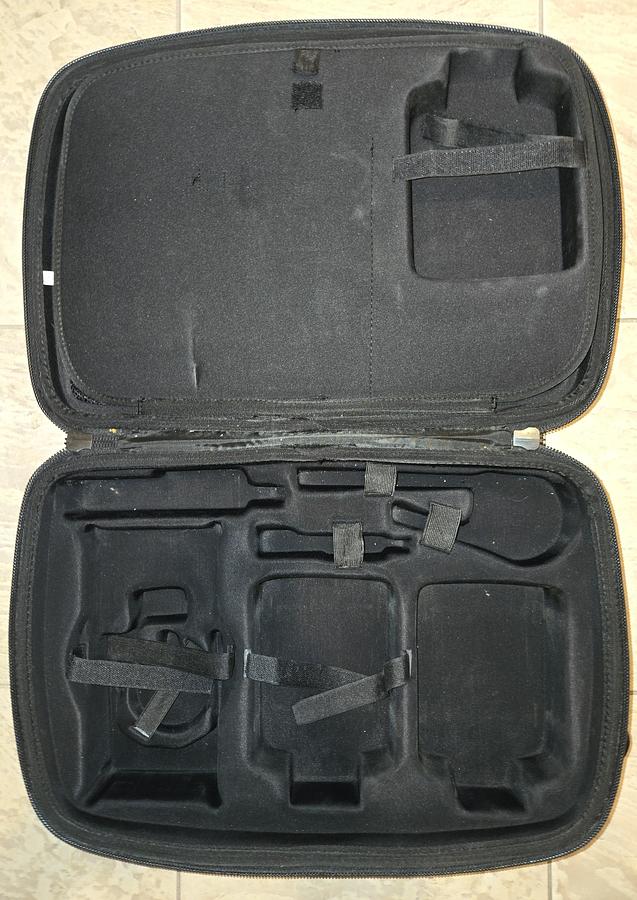

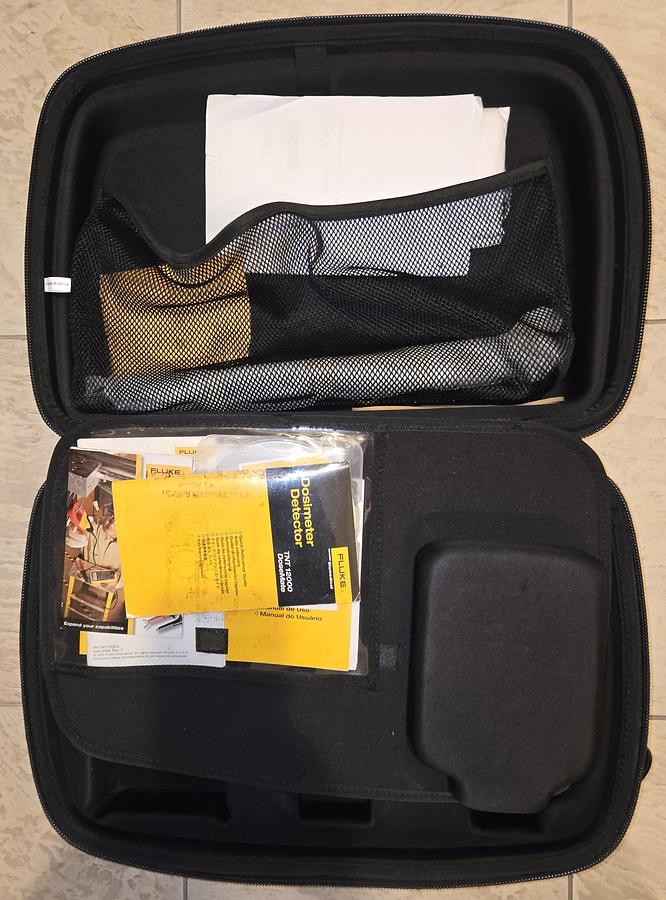

• Carrying Case
