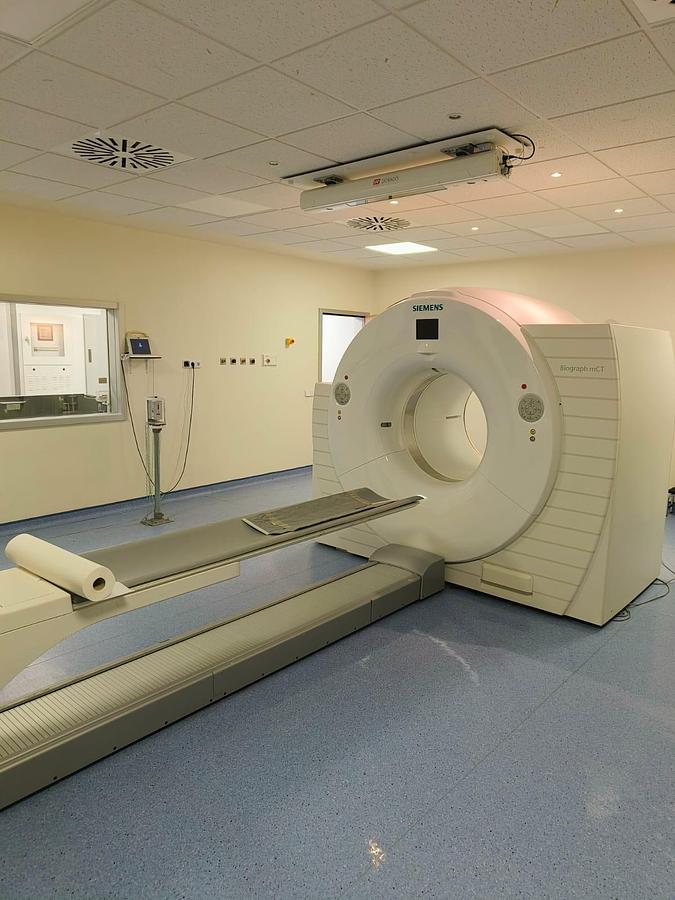

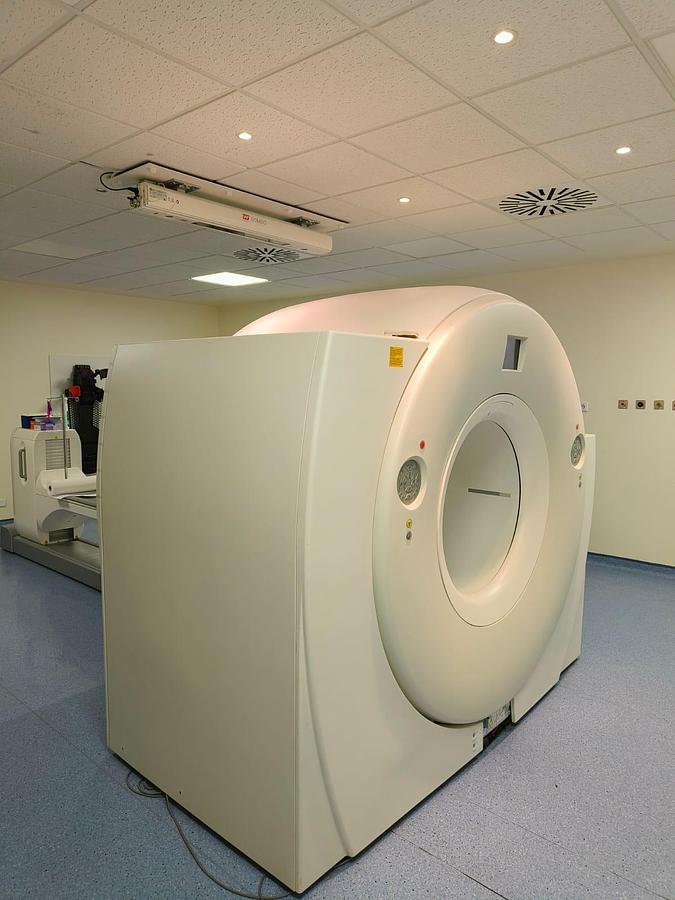

Siemens Biograph mCT 20 PET/CT

The Siemens Biograph mCT 20 PET/CT scanner is a 20-slice, 78 cm bore hybrid imaging system featuring 4×4×20 mm LSO crystals, 540 ps timing resolution (Time of Flight), and 500 lb (227 kg) table capacity. It delivers high-resolution, fast, and quantitative PET imaging integrated with a 20-slice CT, with options for SAFIRE iterative reconstruction and iMAR metal artifact reduction. The system uses LSO crystal detectors to provide superior image quality and TOF technology, aiding in high-speed, low-dose, and accurate quantitative PET imaging.

System DOM: March 2015

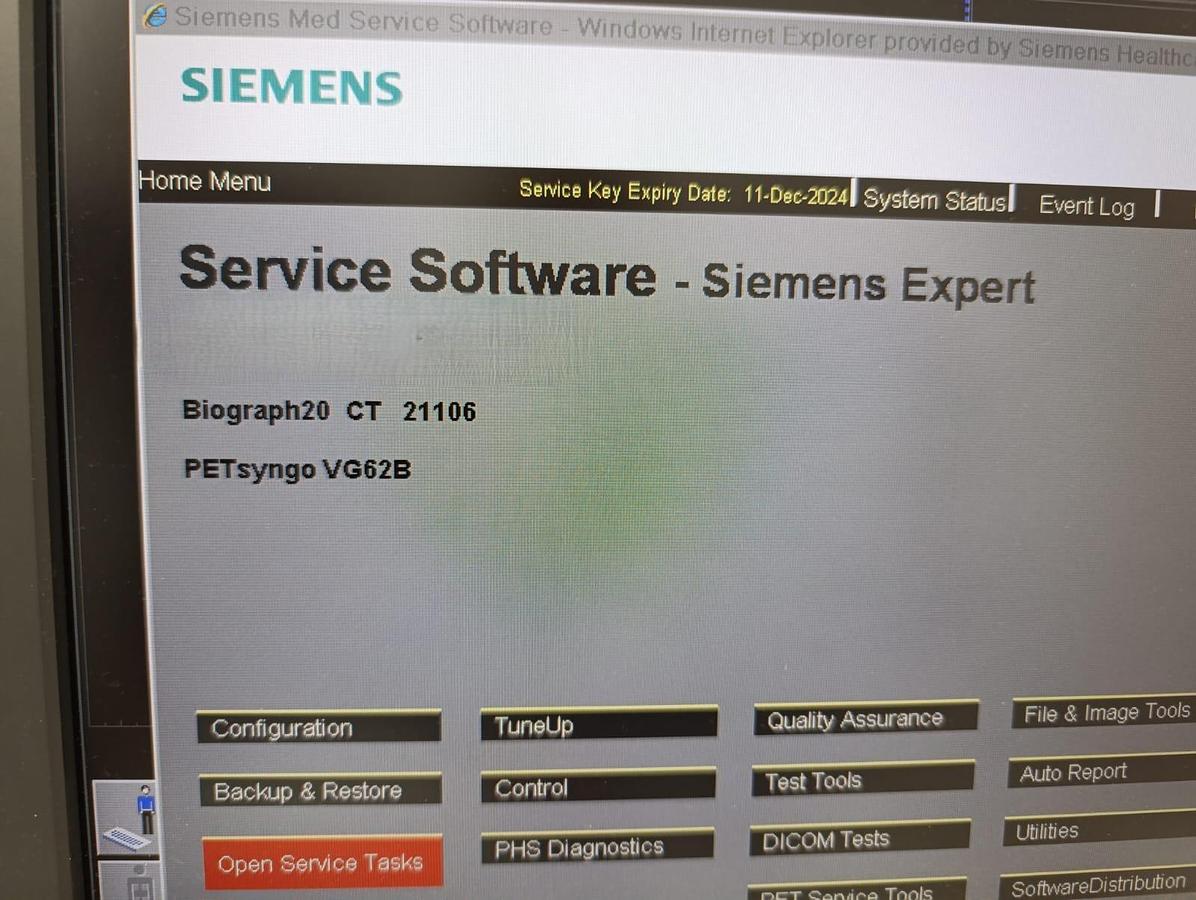

System Software: PET/syngo VG62B

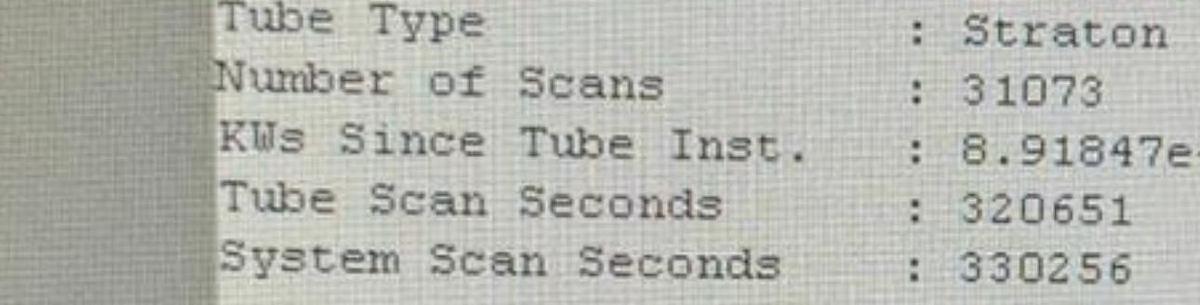

System Scan Seconds: 330256

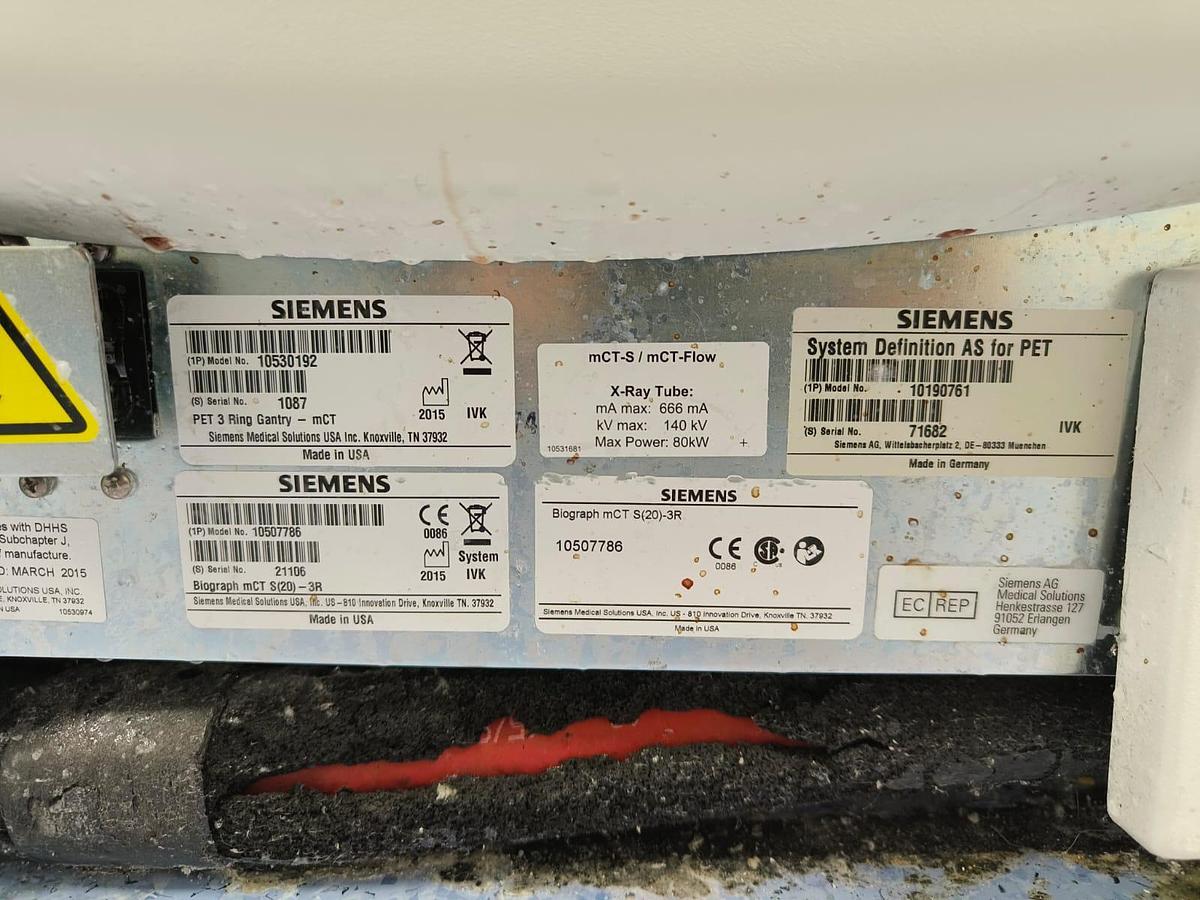

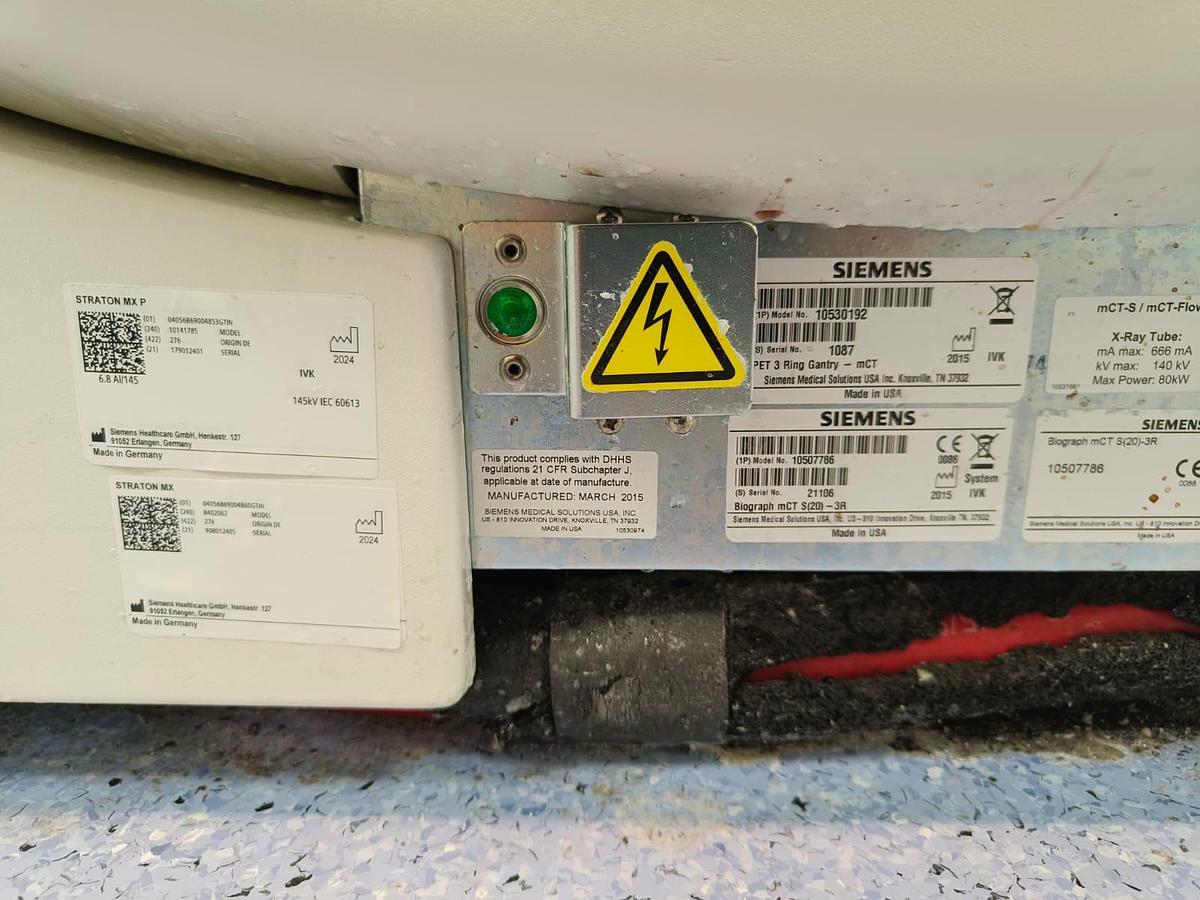

Tube YOM/Type: 2024 Straton MX P (Model: 10141785)

Tube Scan Seconds: 320651

Key Technical Specifications

• PET Components:
• Crystal Type: Lutetium Oxyorthosilicate (LSO).
• Crystal Size: 4x4x20 mm.
• Axial Field of View (FOV): 16.4 cm or 22.1 cm.
• Time of Flight (TOF): Yes, with 540 ps coincidence time resolution.
• Sensitivity: 13.2 - 23.1 cps/kBq.
• Transaxial FOV: 70 cm.
• CT Components (20 Slice):
• Generator Power: 80 kW, 100 kW.
• Tube Voltages: 70, 80, 100, 120, 140 kV.
• Rotation Times: 1.0, 0.5, 0.33, 0.30, 0.28 s.

• CT Components (20 Slice):
• Generator Power: 80 kW, 100 kW.
• Tube Voltages: 70, 80, 100, 120, 140 kV.
• Rotation Times: 1.0, 0.5, 0.33, 0.30, 0.28 s.
• System & Patient Handling:
• Bore Diameter: 78 cm.
• Table Load Capacity: 500 lbs (227 kg).
• Applications: Oncology, Cardiology, Neurology.
• Software/Options:
• SAFIRE (Iterative Reconstruction), iMAR (Metal Artifact Reduction), CARE Dose4D.
