Siemens ARCADIS Avantic

The Siemens Arcadis Avantic is a high-end, multipurpose mobile C-arm designed for advanced surgical procedures requiring high power and a large field of view. It is particularly valued for its industry-leading 13-inch image intensifier and a powerful 25 kW generator, making it a standard choice for vascular and cardiac surgery.

Key Features & Specifications:

• Imaging Performance: Features a fully digital
•  imaging chain and a 13-inch (33 cm) image intensifier and a tube current of up to 250 mA.
• Clinical Versatility: Ideally suited for vascular, cardiac, orthopedic, and trauma surgery. It offers specialized packages like "Vascular" and "Cardiac" with features such as Digital Subtraction Angiography (DSA) and Roadmapping.

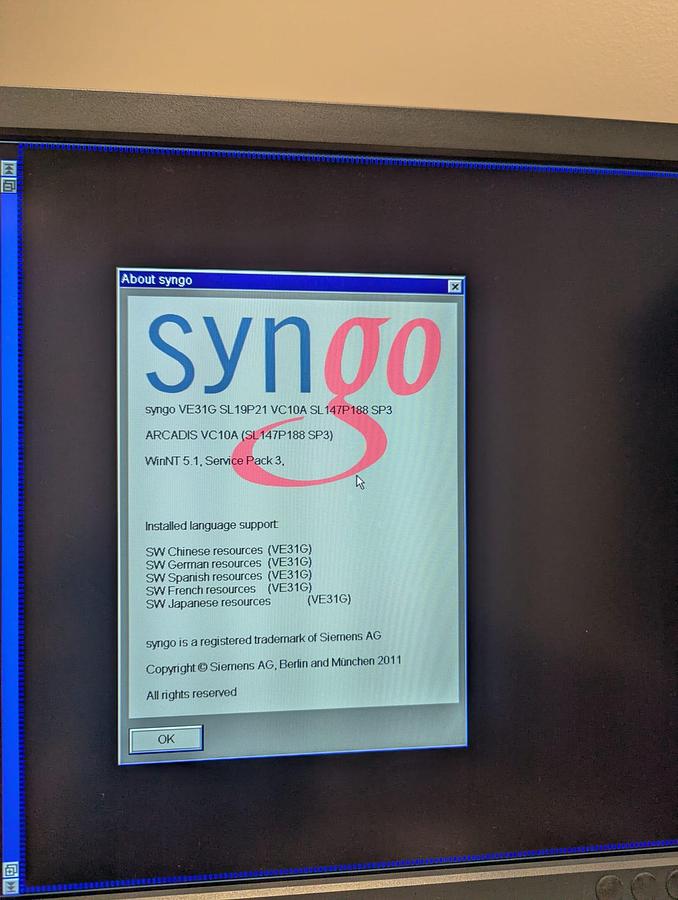

• Workflow Efficiency: Utilizes the syngo user interface for intuitive operation and data handling.

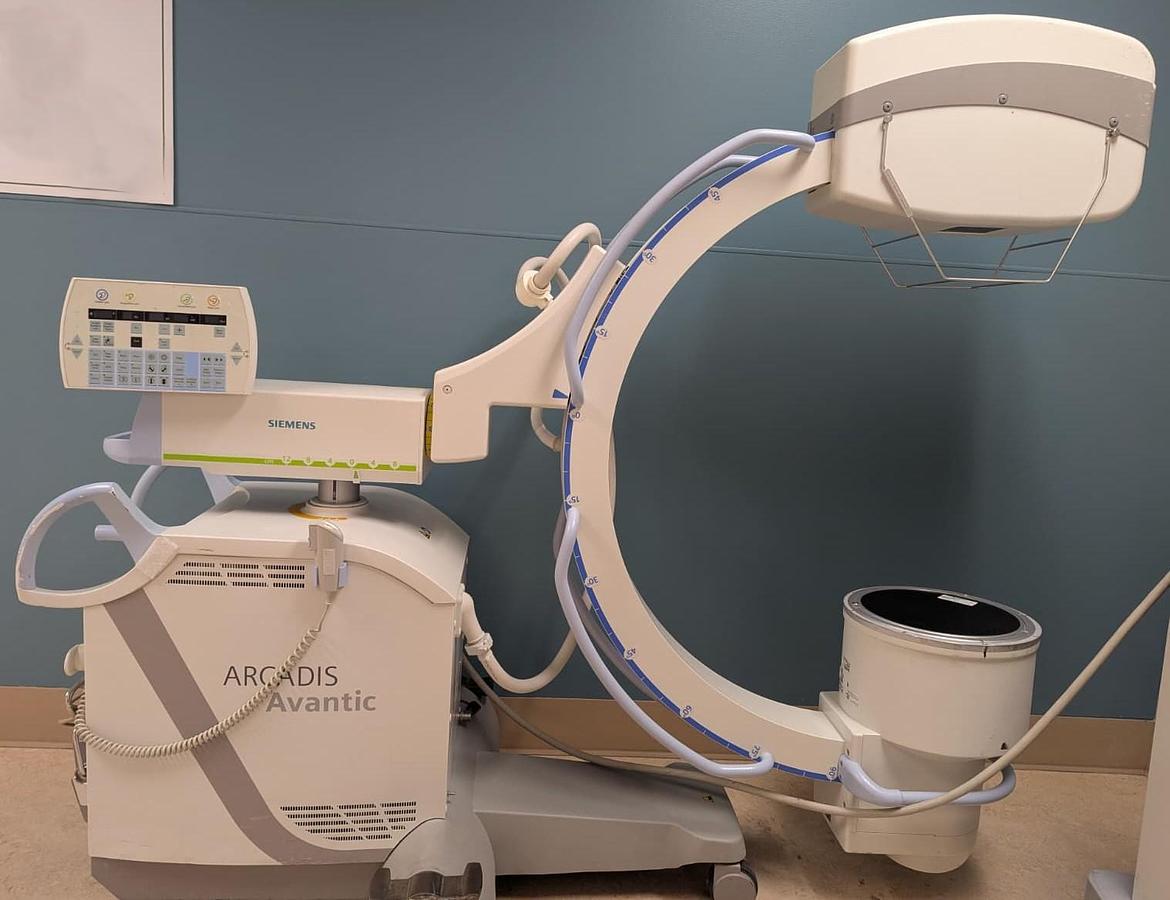

• Maneuverability: The system includes a counterbalanced C-arm design with 132° orbital movement and motorized vertical travel. You can view a Siemens Arcadis Avantic Features Overview to see how its ergonomic design assists in tight OR spaces.

Technical Specifications:

Generator Power: 25 kW (max pulsed)

Image Intensifier: 13" (33 cm)

Orbital Movement: 132° (-42° to +90°)

Storage Capacity: Up to 60,000 images

Heat Capacity2.57 MHU
