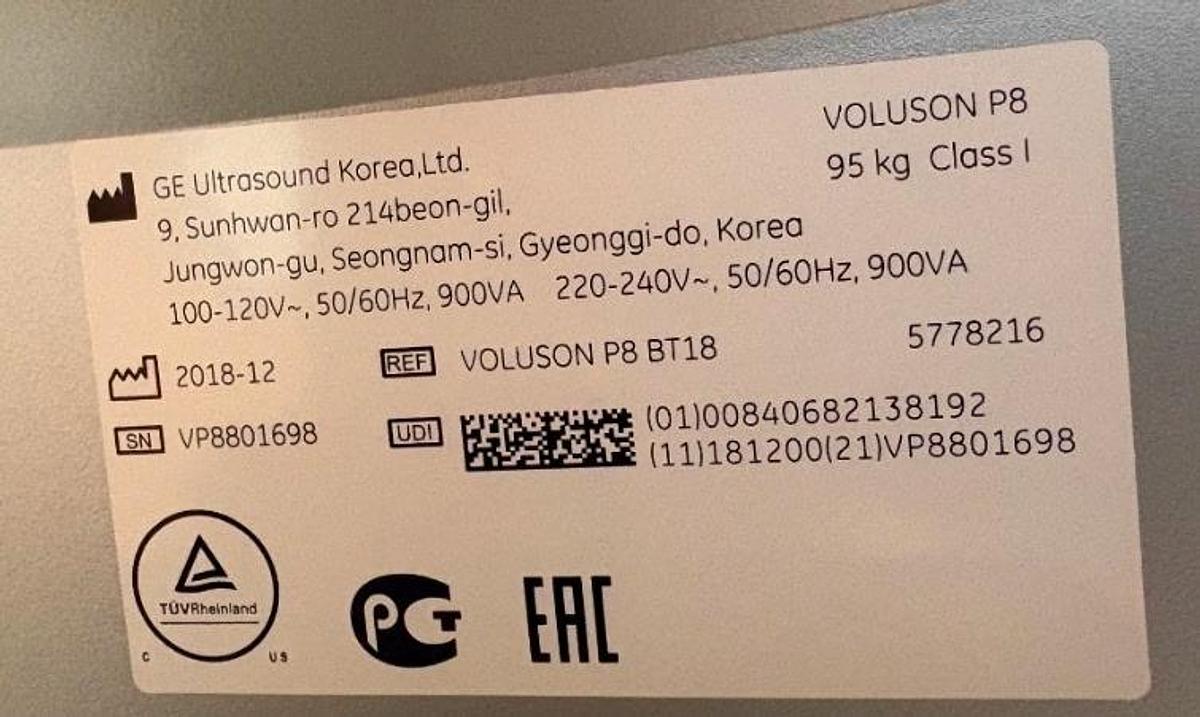

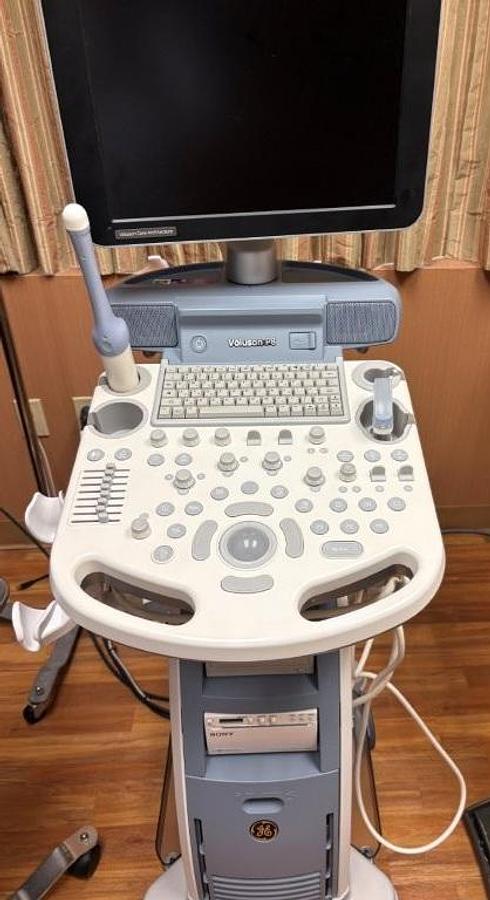

VOLUSON P8 BT18 OB/GYN Ultrasound System

The GE Voluson P8 BT18 is a compact ultrasound system designed for OB/GYN, offering advanced 2D/3D/4D imaging, a 17-inch LCD monitor, and 3 active probe ports. Built on Core Architecture, it features automated tools (SonoBiometry, AO) to improve workflow and image quality, weighing approximately 143–150 lbs.

Key Technical Specifications & Features

• Monitor: 17-inch High-Resolution LCD LED flat panel display.
• Imaging Modes: B-Mode, M-Mode, Color Flow Mode, Power Doppler Mode, Spectral Doppler (PW), 3D/4D Imaging.
• Architecture: Voluson Core Architecture for enhanced 2D/3D imaging.
• Probe Ports: 3 active probe ports.
• Hard Drive: 500 GB internal hard drive.
• Image Optimization: Automatic Optimization (AO), CrossXBeam, Speckle Reduction Imaging (SRI).
• Weight: ~143 lbs (65 kg) to 150 lbs (68 kg).

Power Options: Includes a battery pack for 20 minutes of scanning/system wake time.

Key Technologies & Software

• SonoAutomation: Includes SonoBiometry (for fetal measurements) and SonoRender Start.
• HD-Flow: For high-resolution blood flow imaging.
• Radiantflow: Provides sensitive color Doppler, a feature highlighted in.
• SonoL&D: Assists with quantitative progression measurements during labor and delivery.
• Reporting: Automated 1st, 2nd, and 3rd-trimester reports with PDF export.

Transducers Included

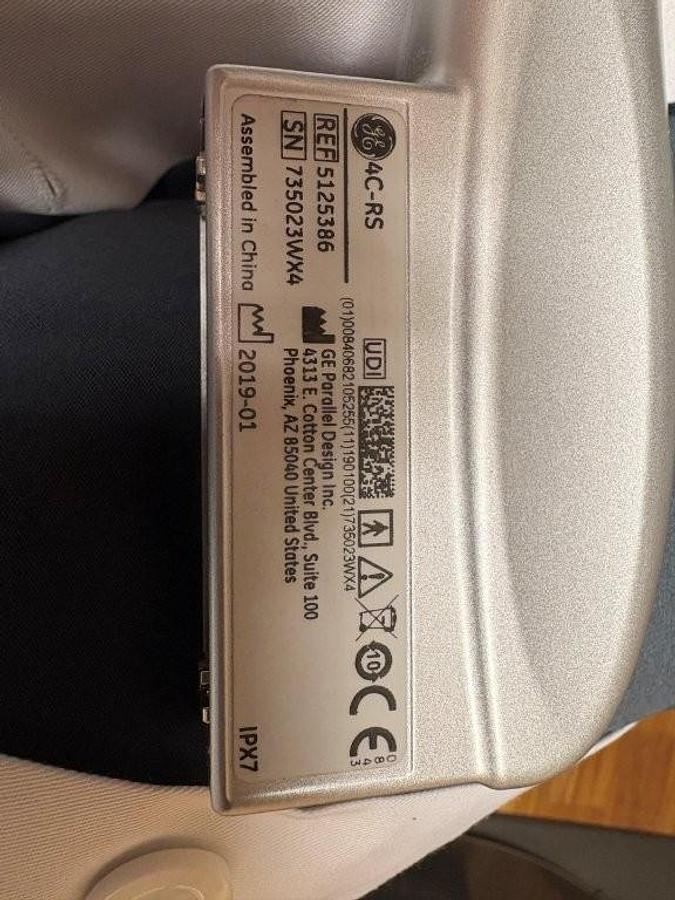

• 4C-RS (Abdominal)

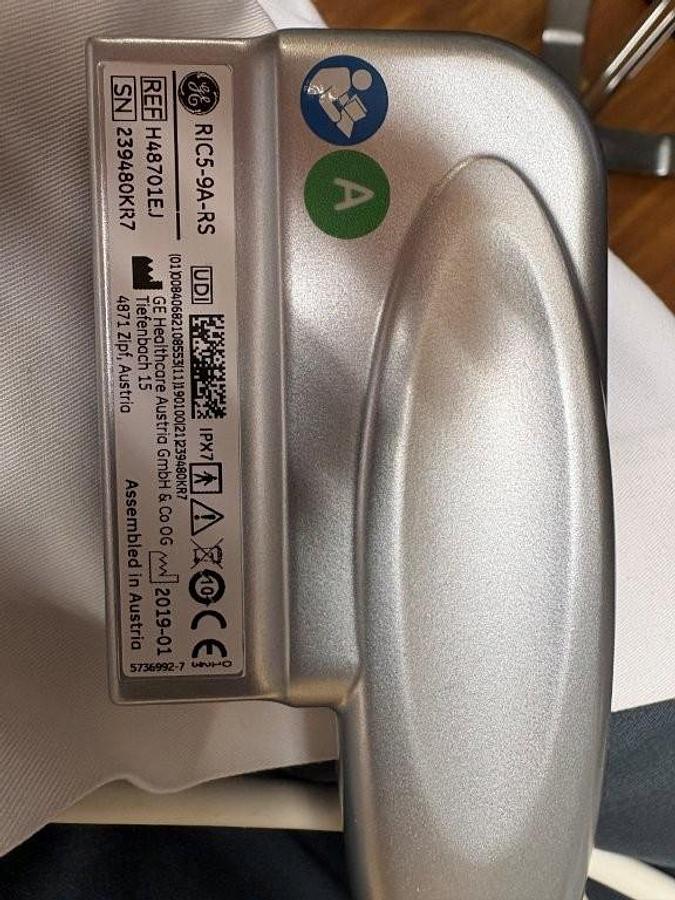

• RIC5-9A-RS (Endocavitary)

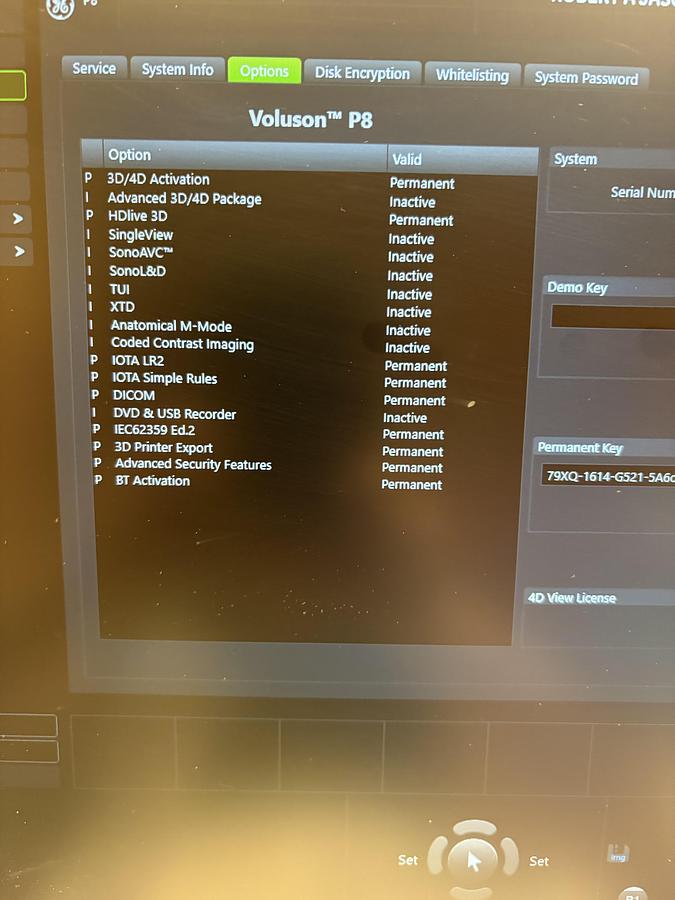

Permanent Licenses

3D/4D Activation

HDlive 3D

IOTA LR2

IOTA Simple Rules

DICOM

IEC62359 Ed.2

3D Printer Export

Advanced Security Features

BT Activation
