Siemens Axiom Artis zee XA Multi-Purpose Lab

The Siemens Axiom Artis zee is a high-performance interventional imaging system designed for cardiology, vascular, and oncology procedures, featuring the MEGALIX Cat Plus X-ray tube with up to 40% greater fluoro power. It offers 2D/3D imaging, a 440 lbs (200 kg) patient weight limit, with high-resolution 2k imaging detectors.

Key Technical Specifications

• X-Ray Tube: Featuring flat emitter technology for smaller focal spots (0.3, 0.6, 1.0 mm).
• Heat Capacity: Anode heat storage capacity of 2.0-2.4 million heat units (MHU) (approx. 2.5–3.375 MHU depending on configuration).
• Detector Type: Amorphous silicon flat detector (available in 30x40 cm or 20x20 cm sizes).
• Imaging Matrix: 2k (2480 x 1920) with 154 \(\mu \)m pixel size.
• Generator Power: 15 kW, 40 kW, or 80 kW.
• C-Arm Movements: Motorized, with up to 55 programmable positions.

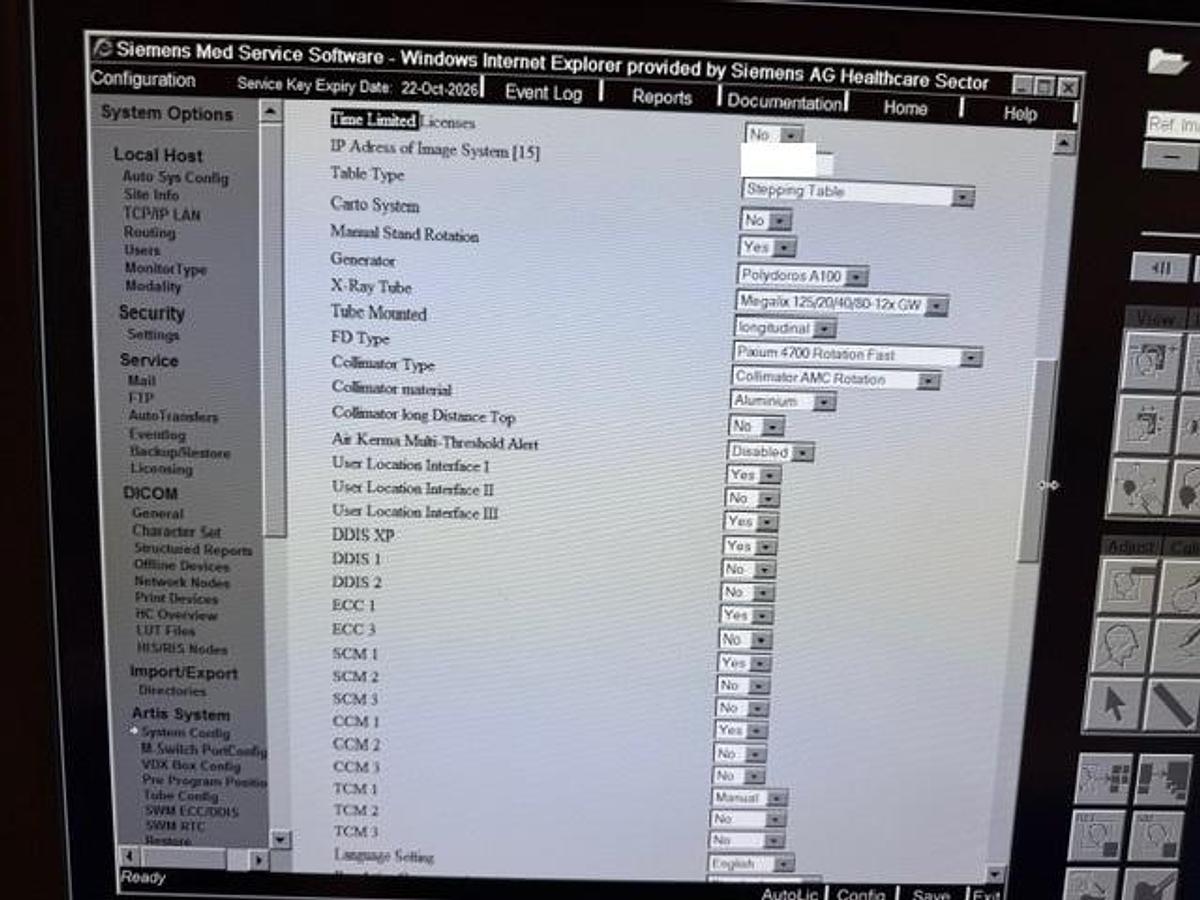

System Details & Features

System DOM: 2013-08

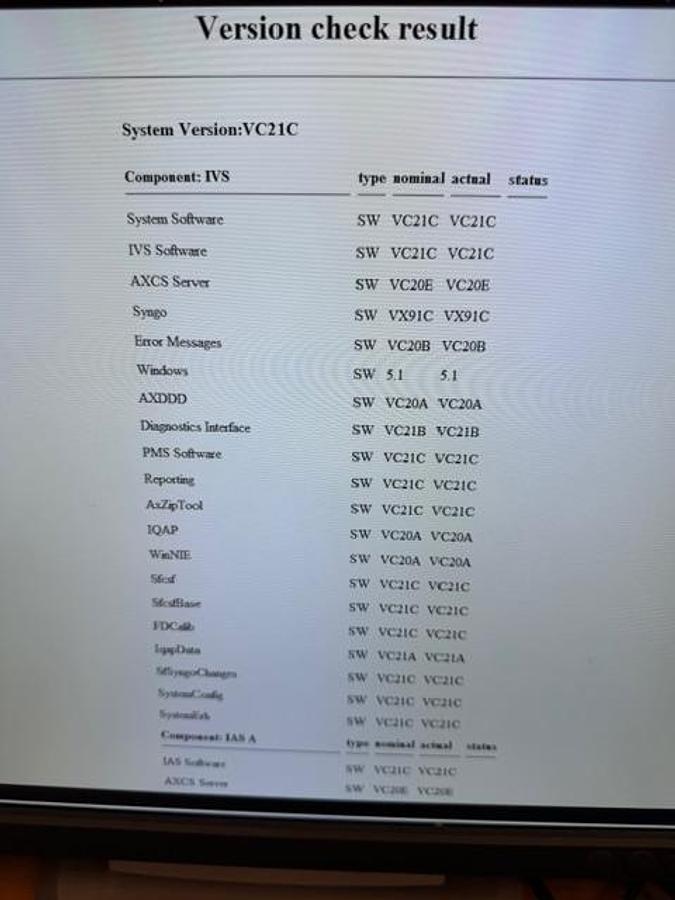

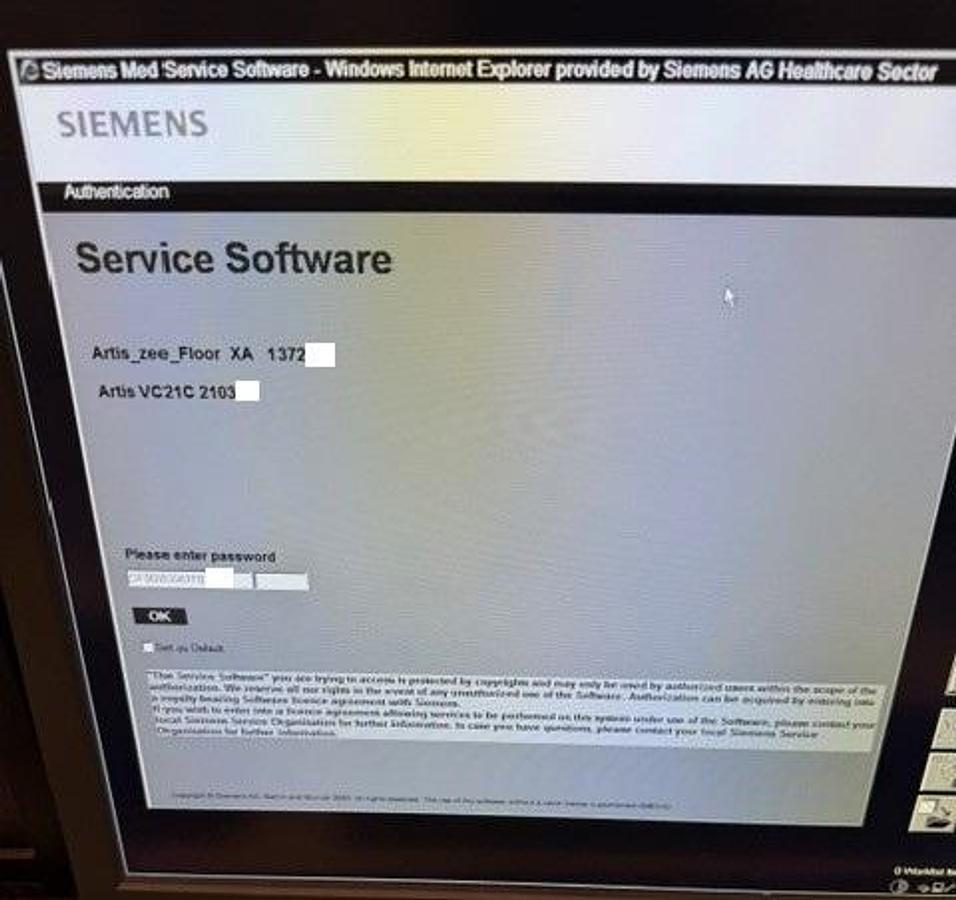

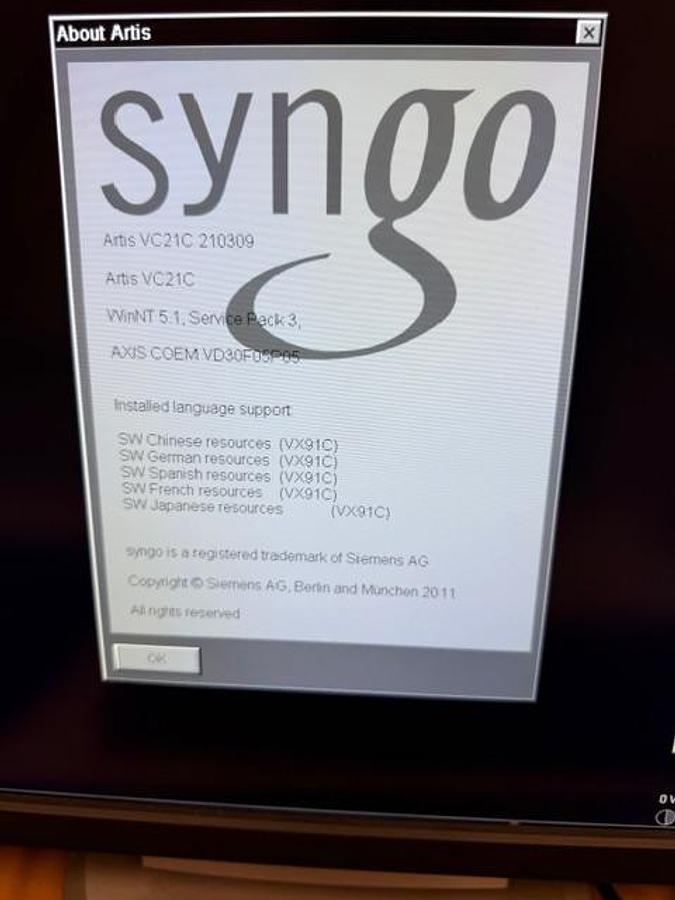

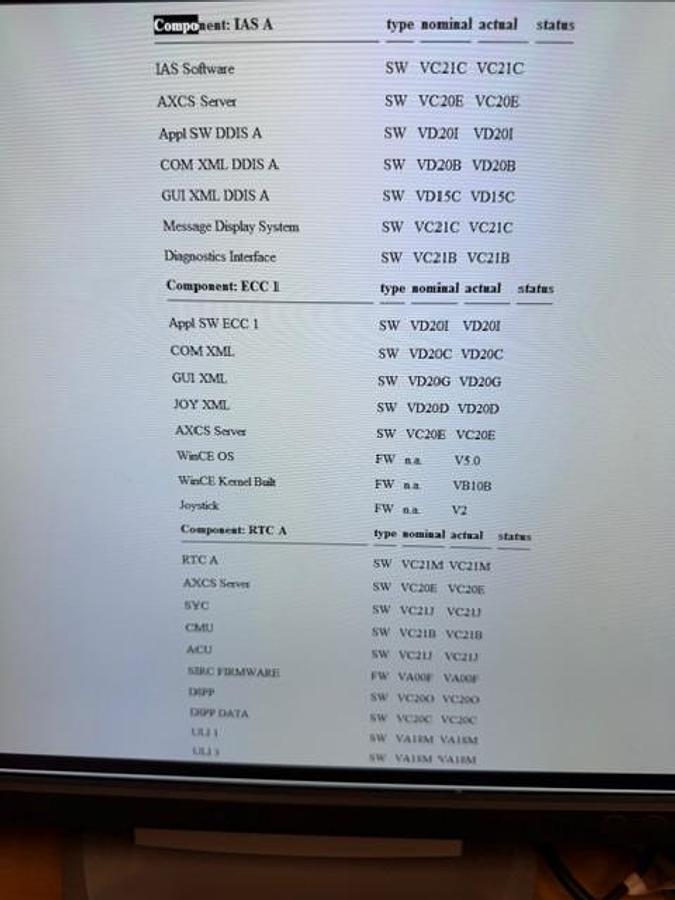

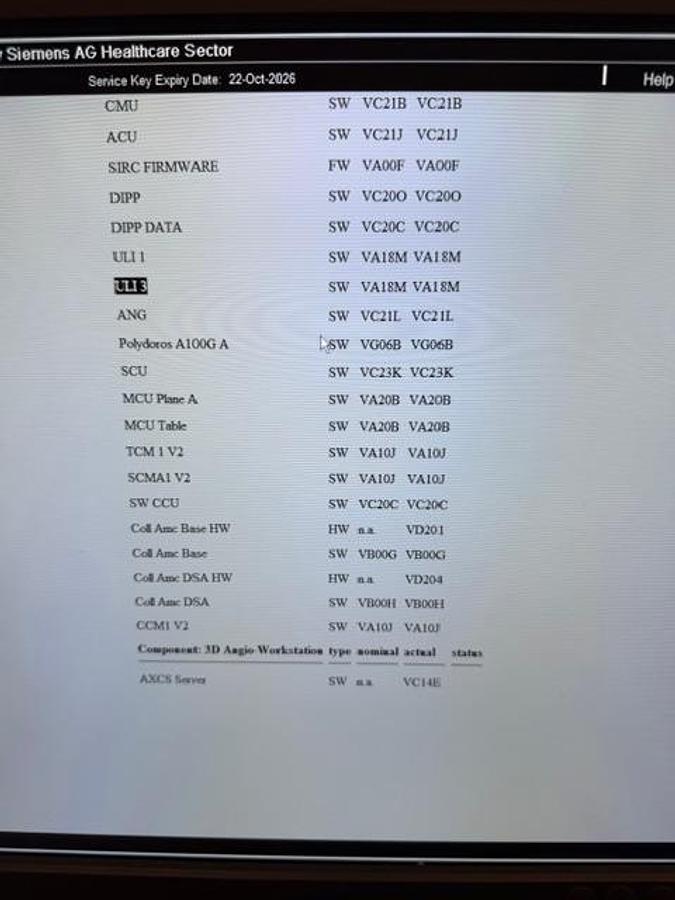

System Software: VC21C

Syngo SW: VX91C

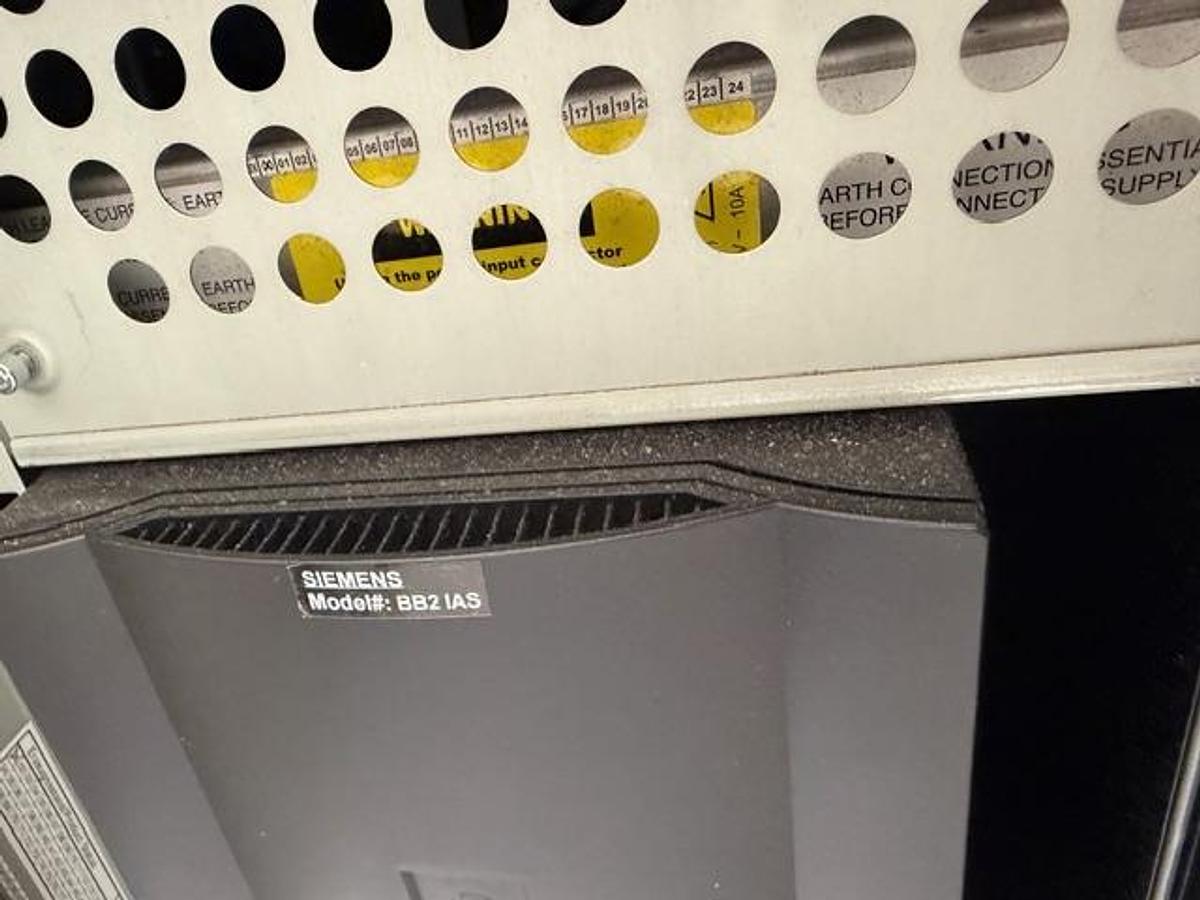

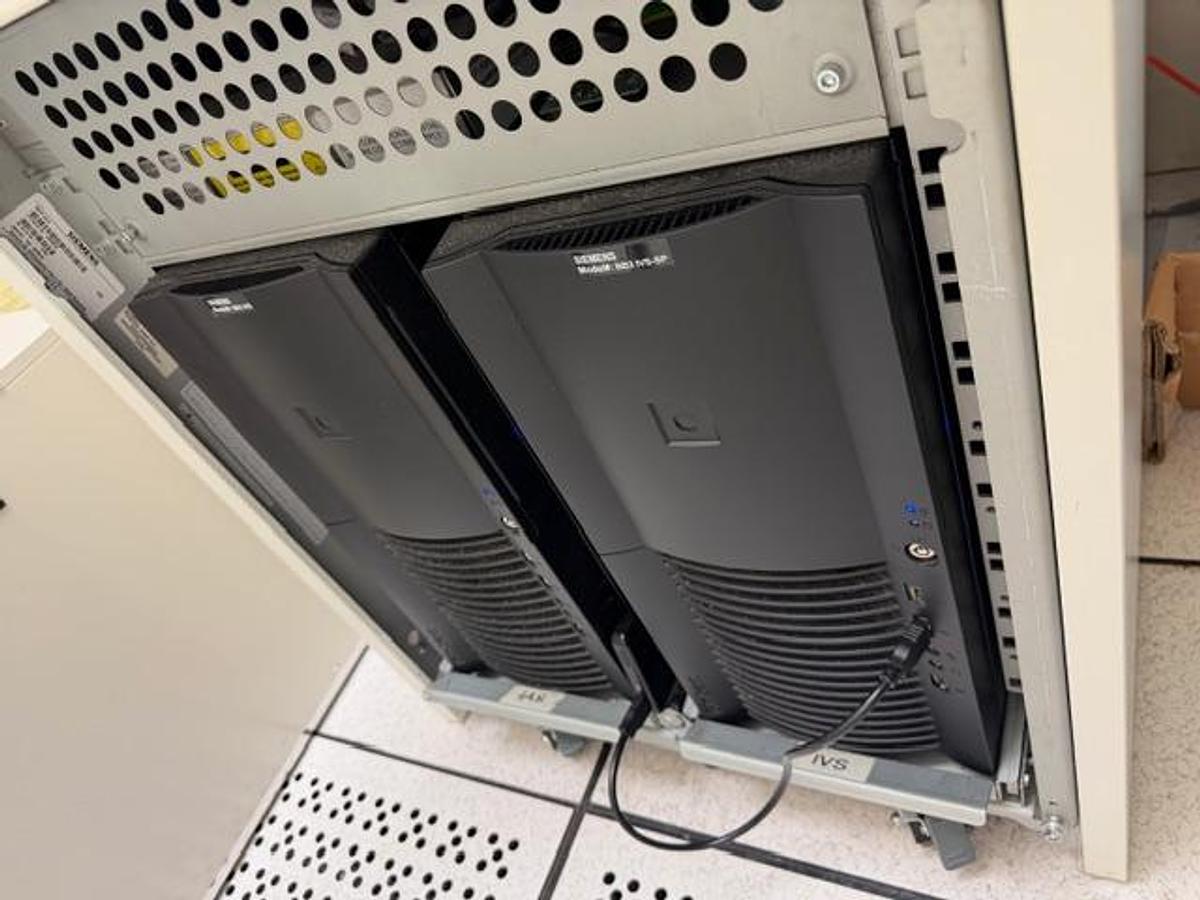

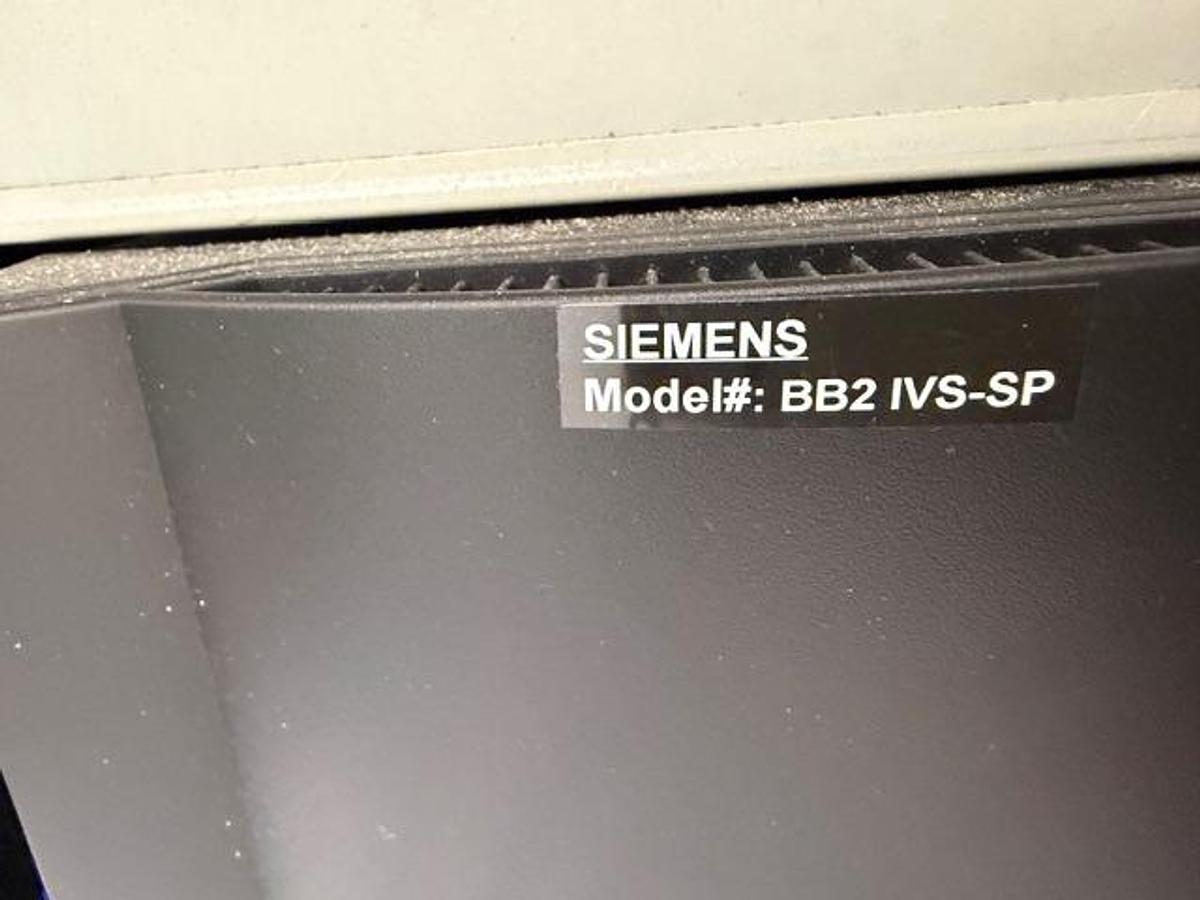

IVS & IAS Model: BB2

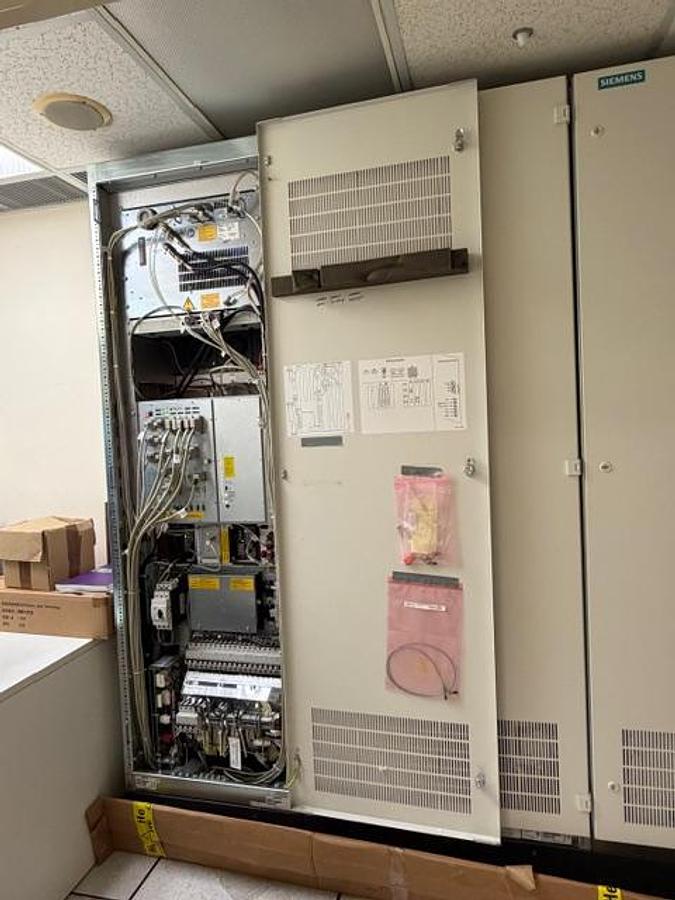

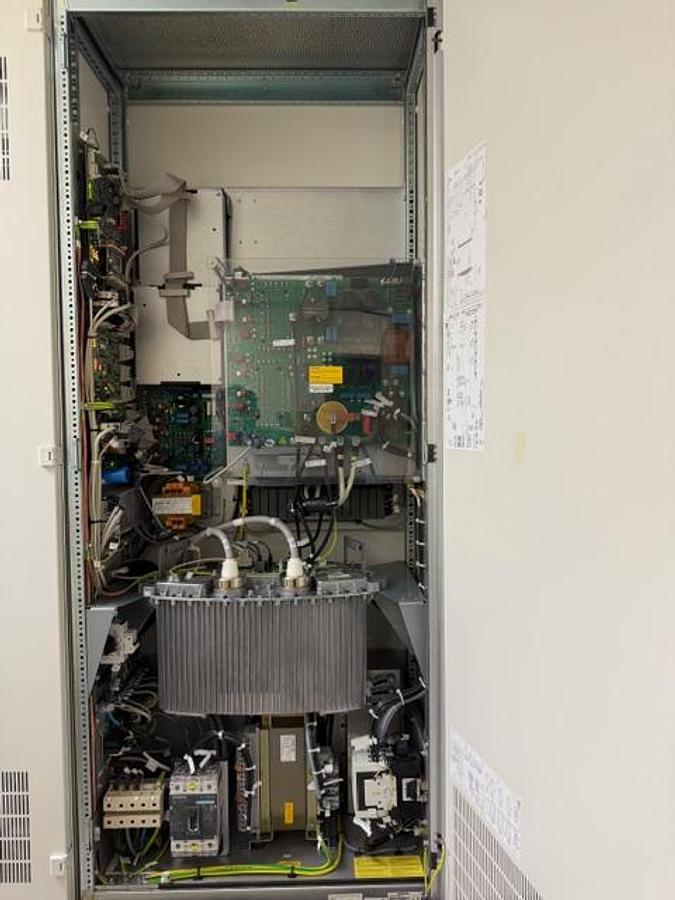

Generator: Polydoros A100

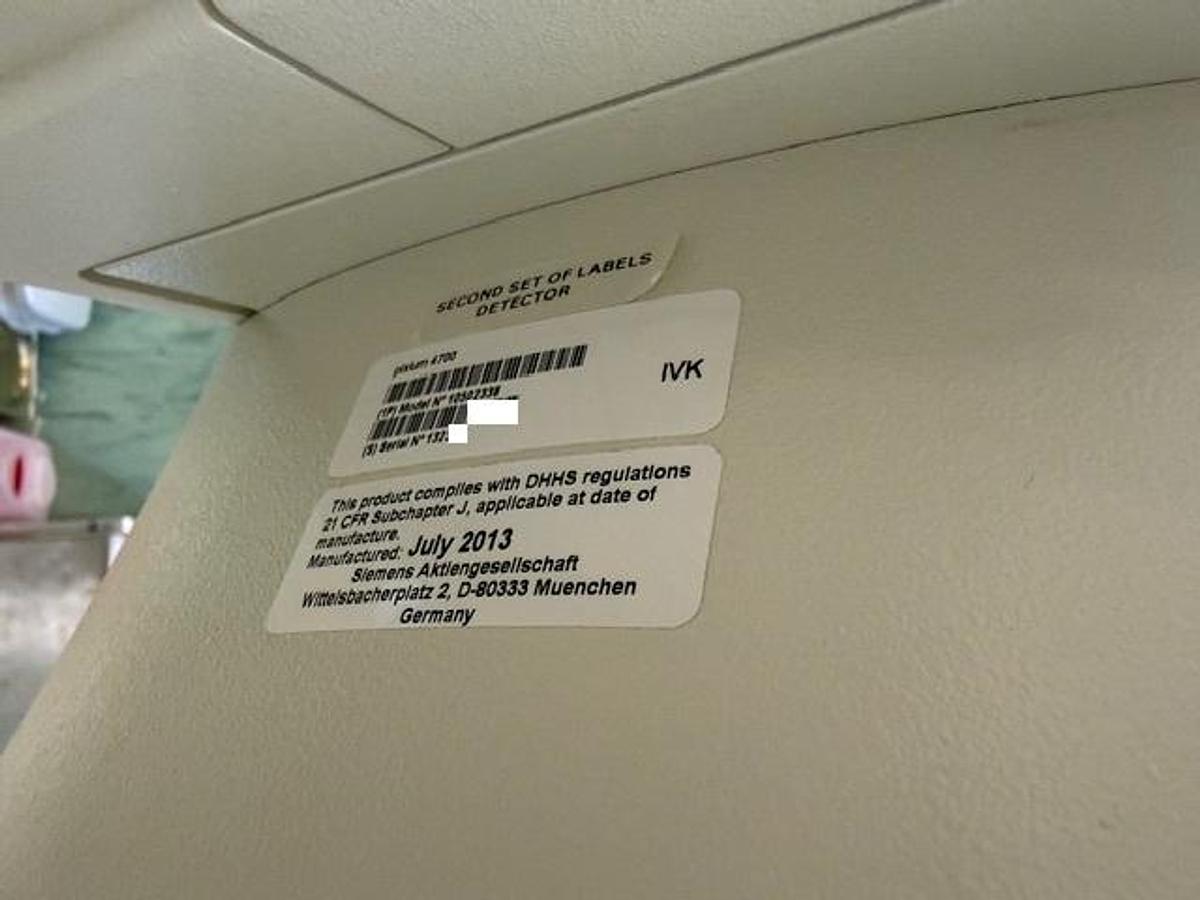

FD Type: Pixium 4700 (30cm x 40cm)

C-Positioner: Floor XA

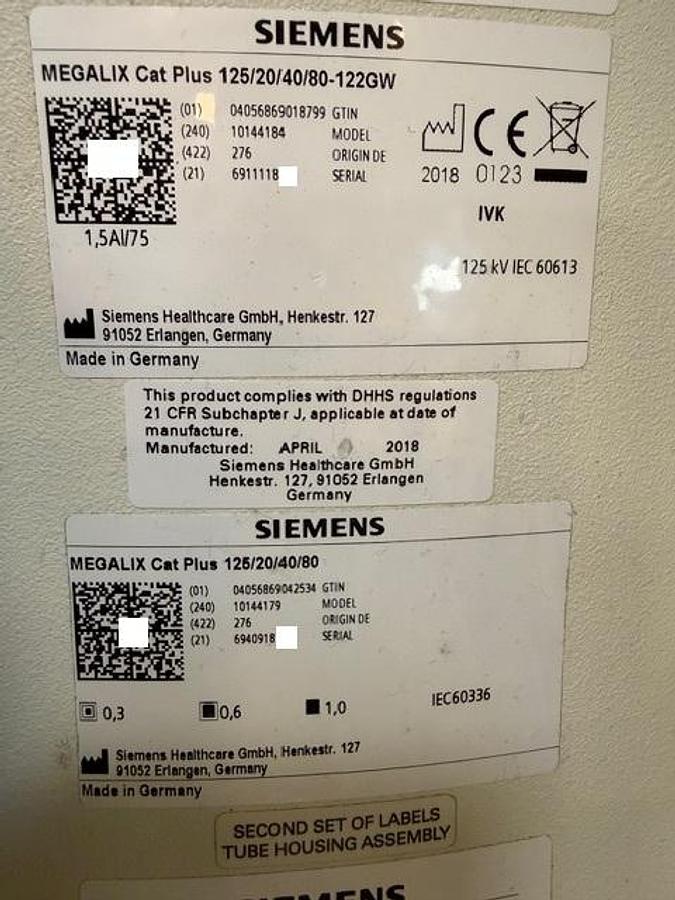

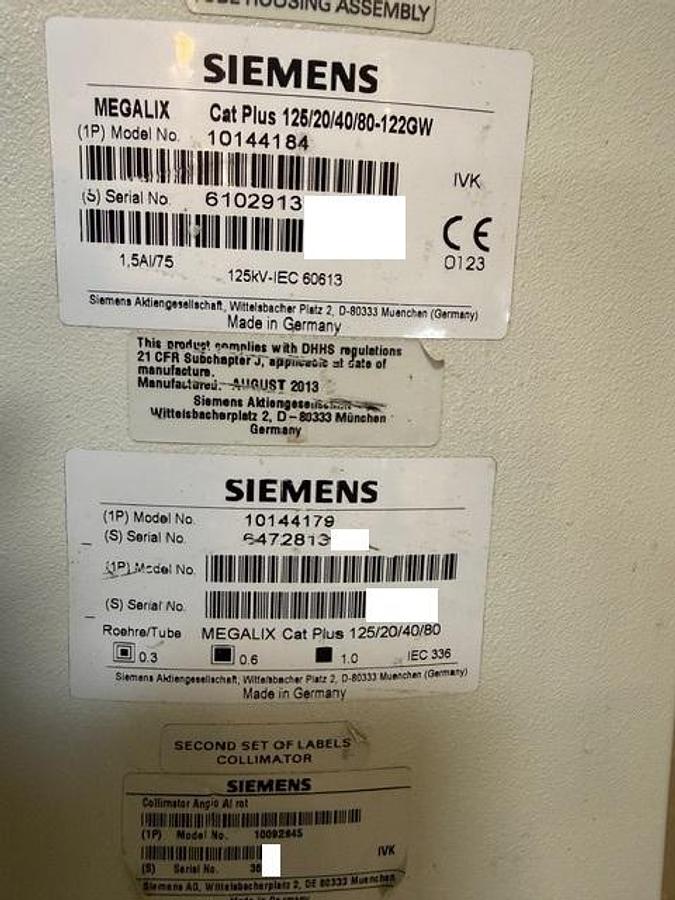

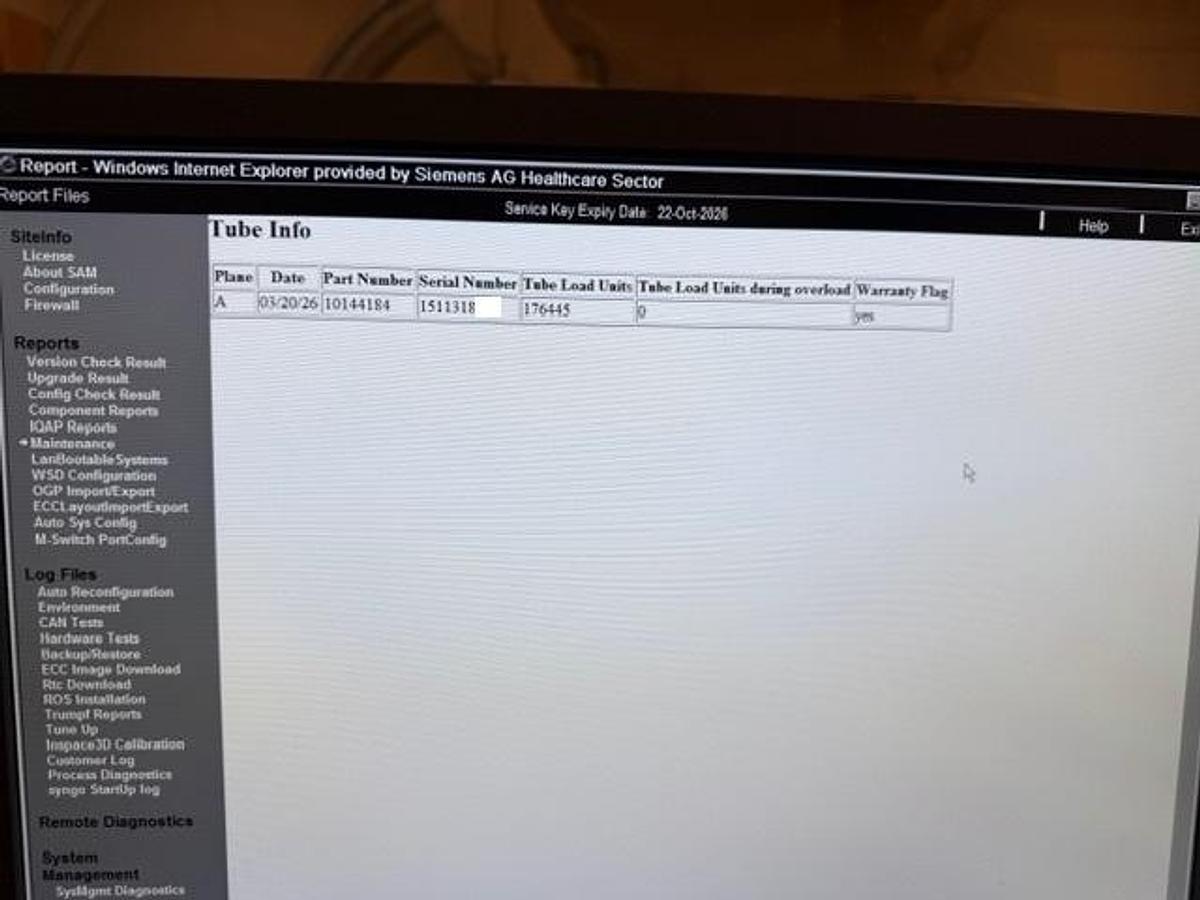

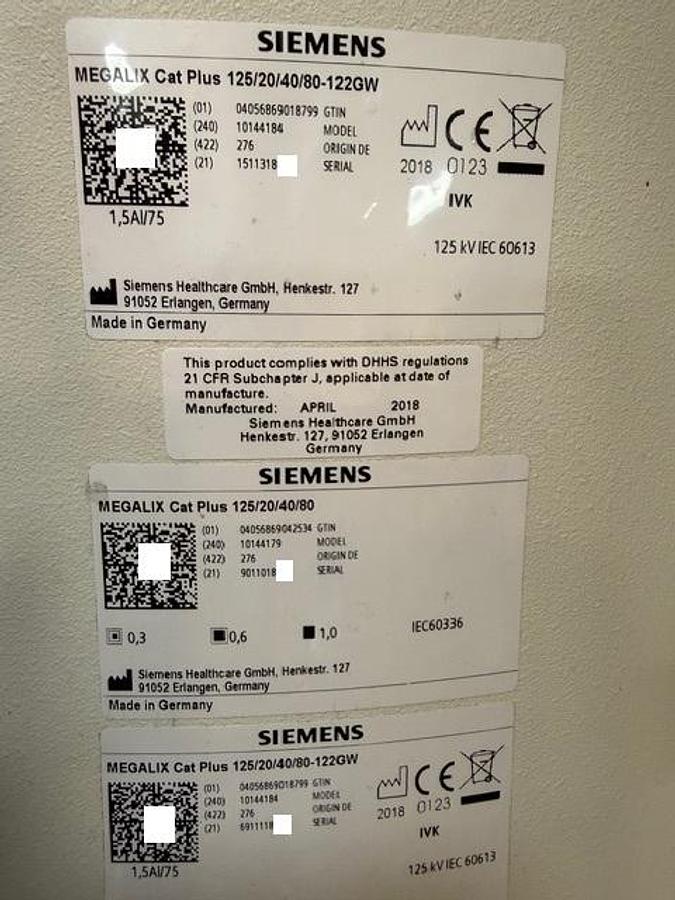

Tube Type: MEGALIX Cat Plus 125/20/40/80-122GW

• Model: 10144184
• YOM: 2018
• Load Units: 176445 (03-2026)

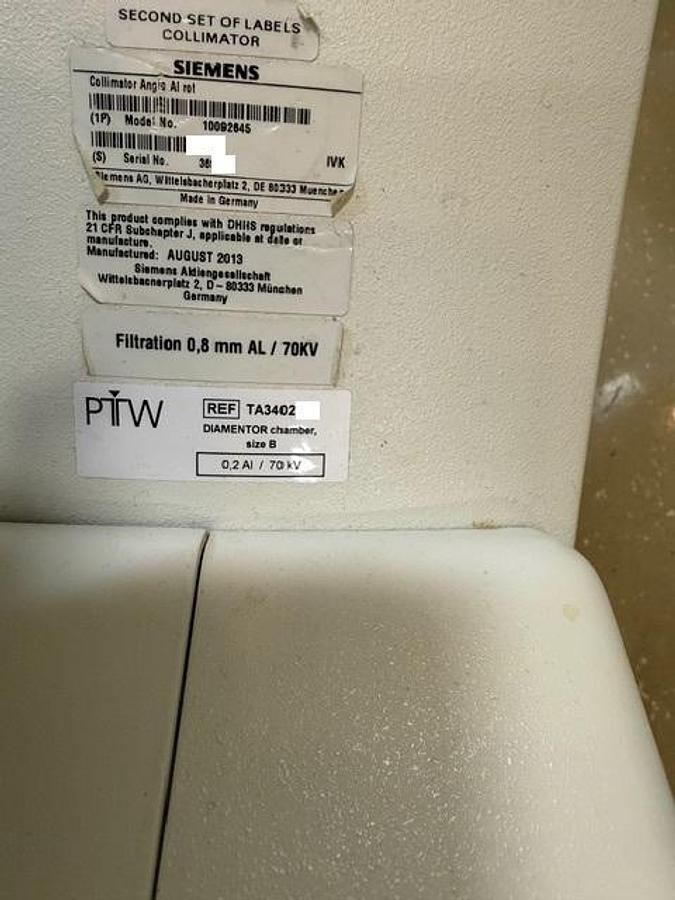

Collimator: Angio AI

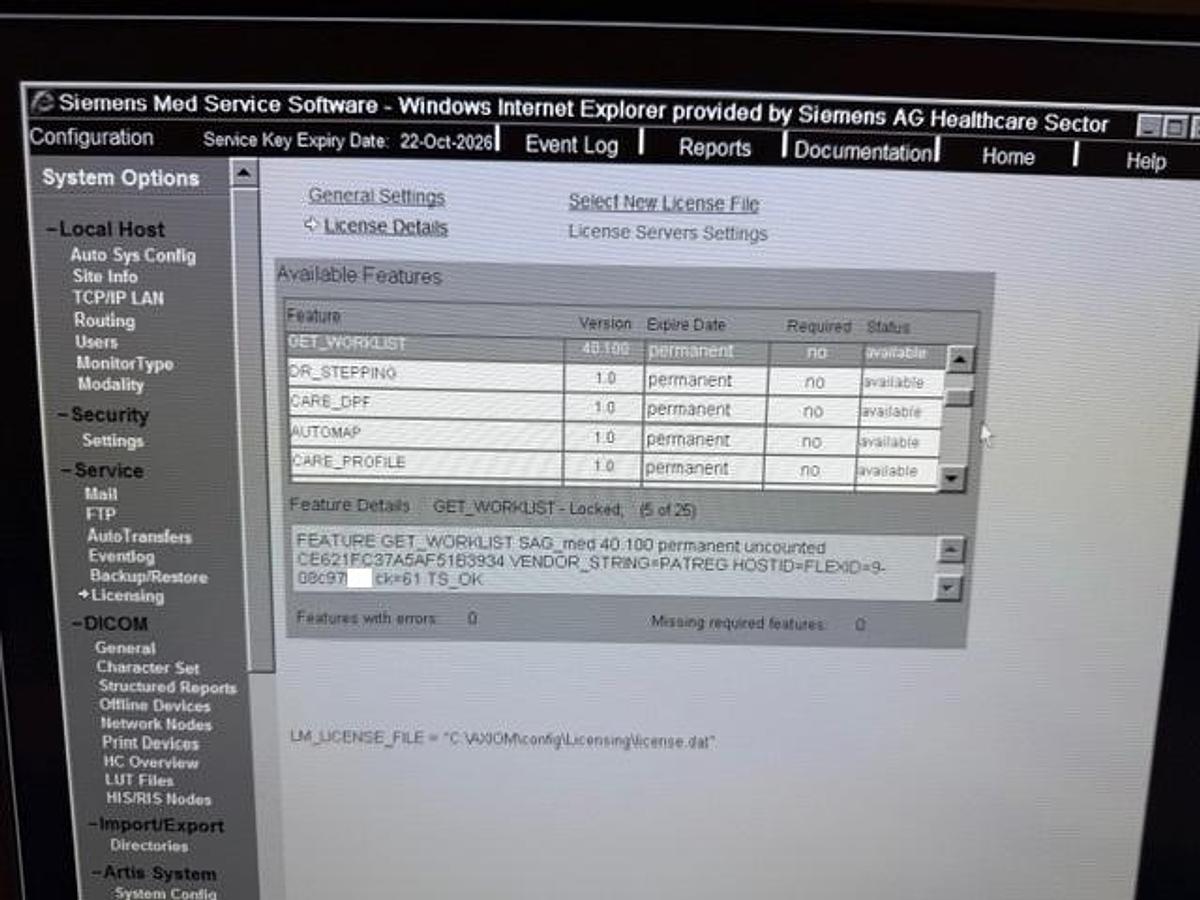

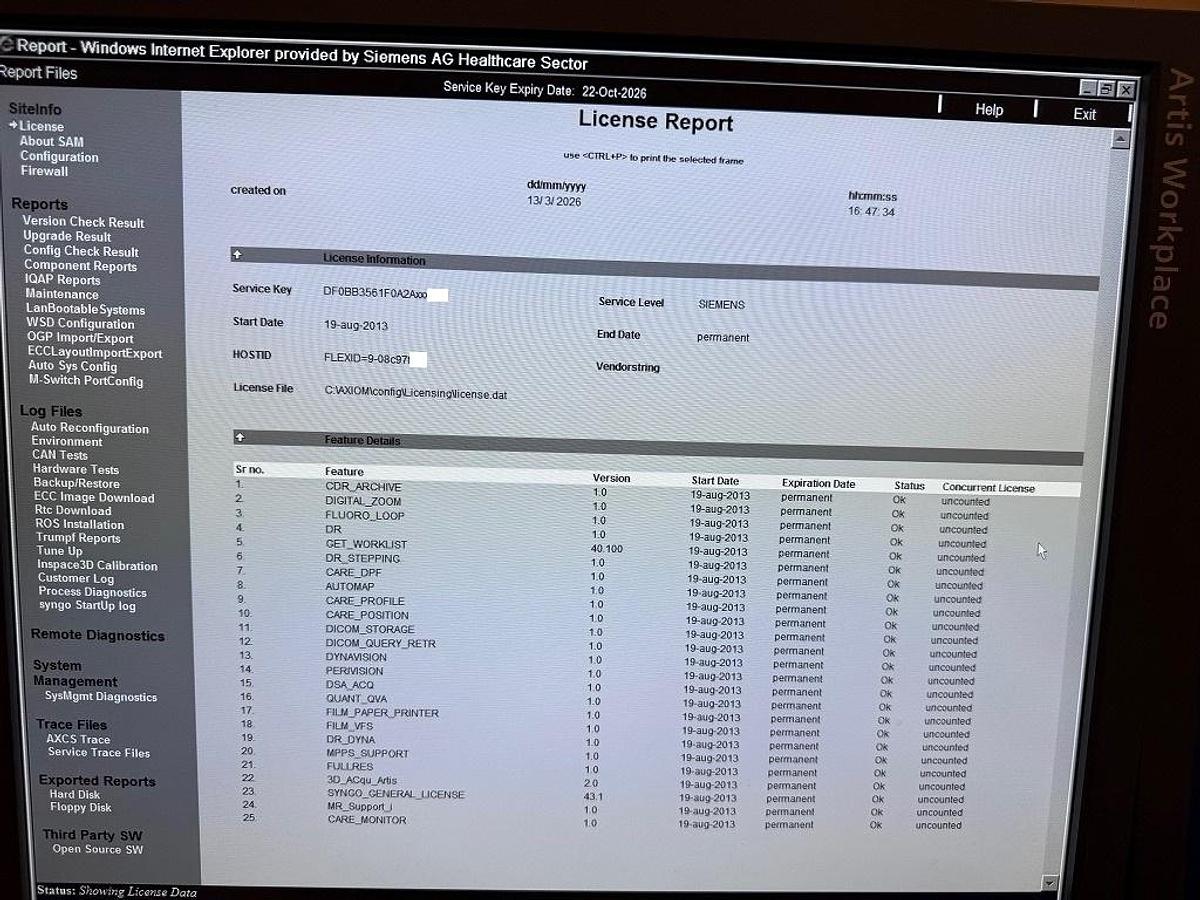

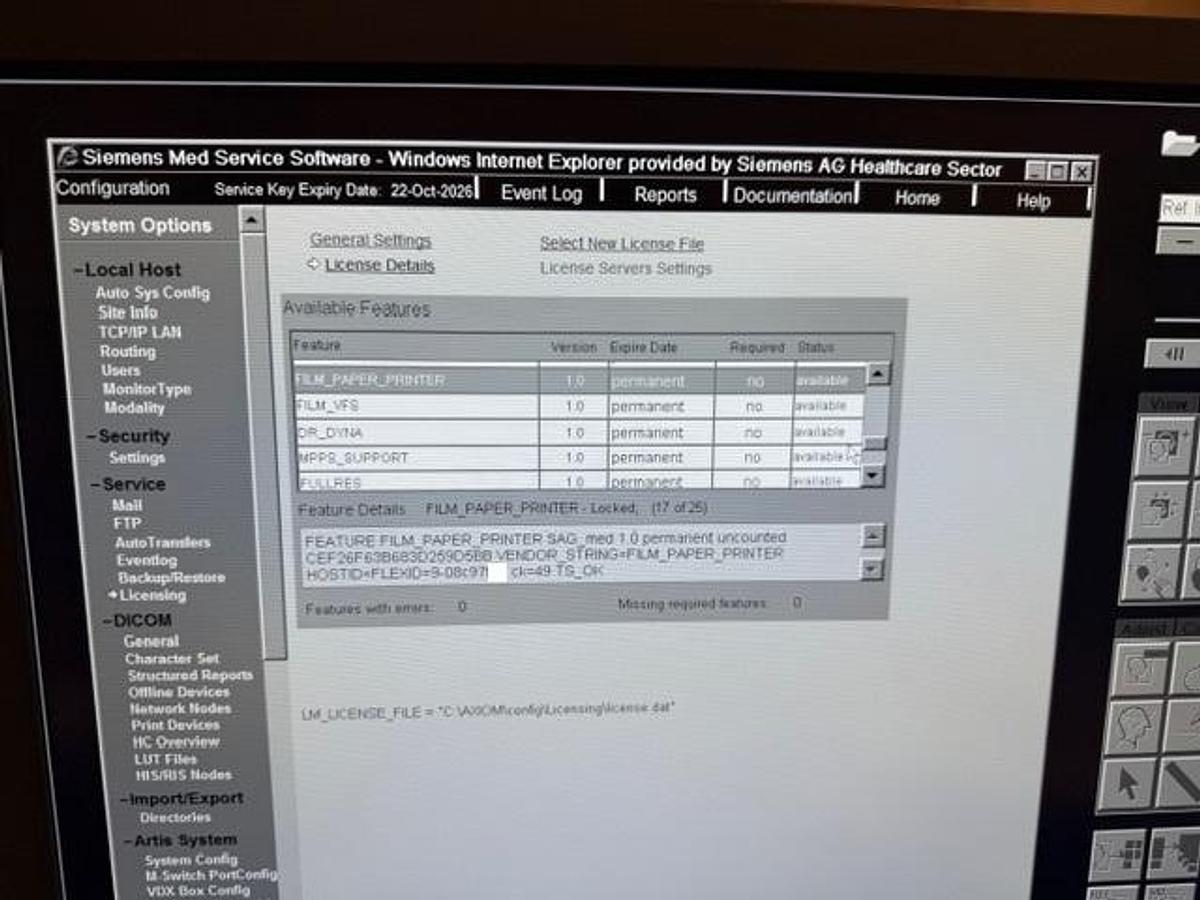

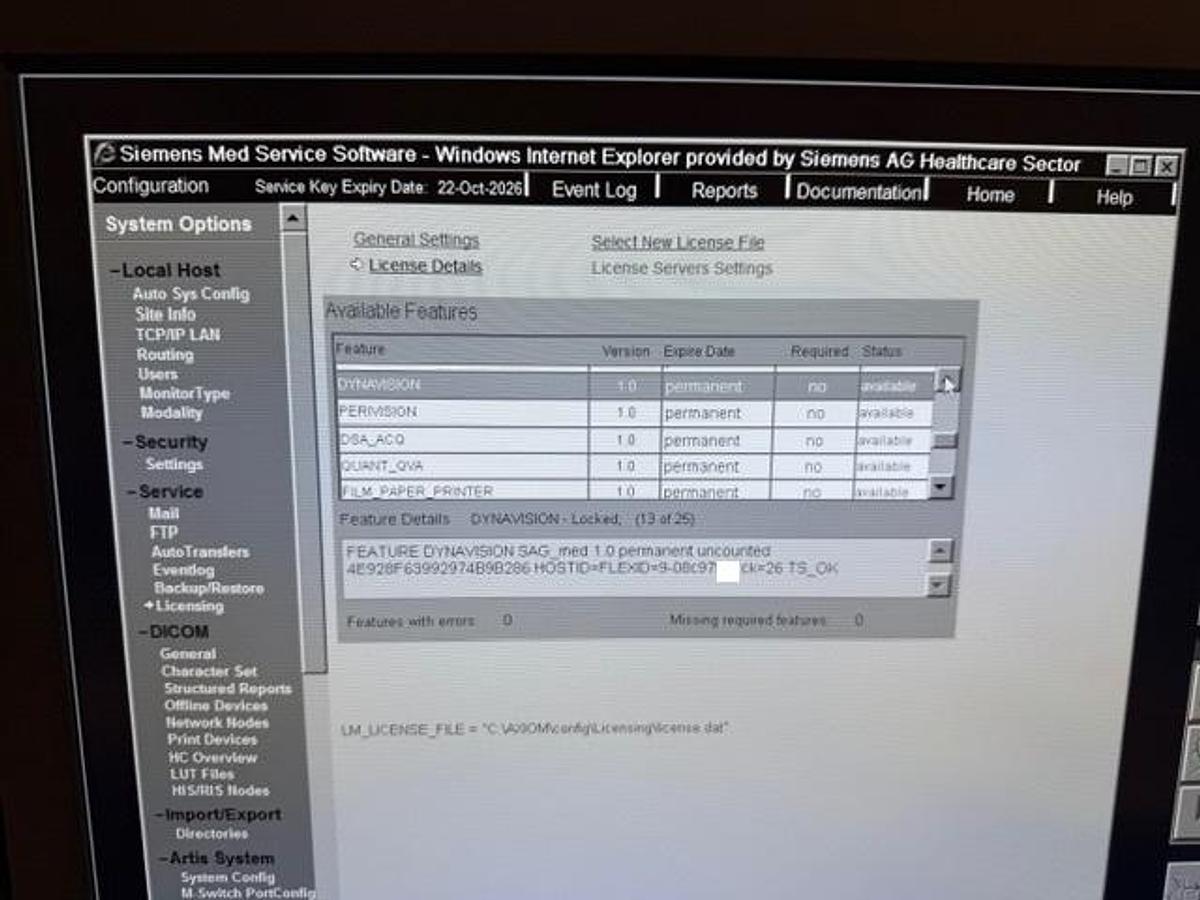

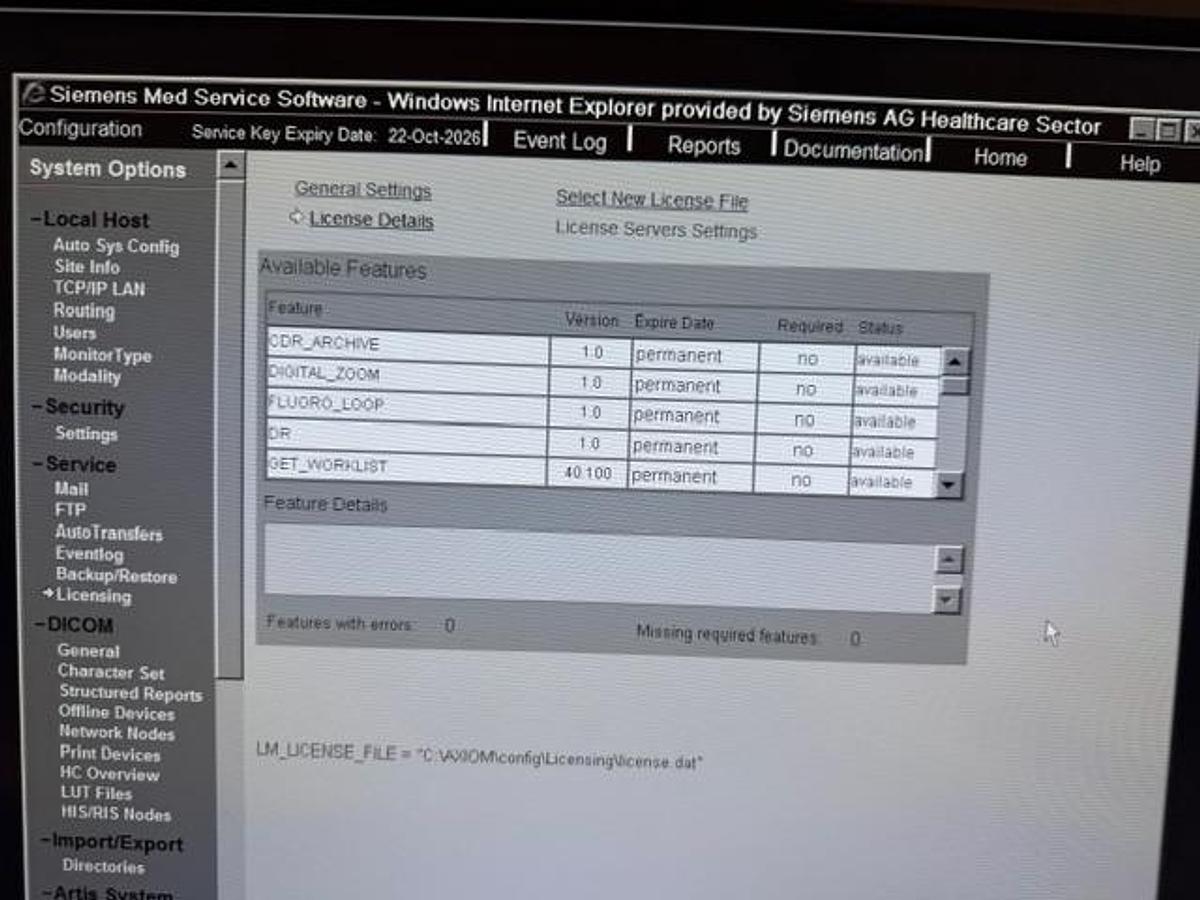

Permanent Licenses

• CDR_ARCHIVE
• DIGITAL_ZOOM
• FLUORO_LOOP
• GET_WORKLIST
• DR_STEPPING
• CARE_DPF
• CARE_PROFILE
• CARE_POSITION
• DICOM_STORAGE
• DICOM_QUERY_RETR
• DSA_ACQ
• QUANT_QVA
• FILM_PAPER_PRINTER
• FILM_VHS
• DR_DYNA
• 3D_ACqu_Artis
• SYNGO_GENERAL_LICENSE
• MR_Support_i
• CARE_MONITOR
