ZELTIQ CoolSculpting Breeze System (fat-freezing)

The ZELTIQ CoolSculpting Breeze System (often identified by model number BRZ-CG1-BAM-110) is a professional-grade, portable thermoelectric medical device designed for non-invasive fat reduction through a process called cryolipolysis. Manufactured by ZELTIQ Aesthetics (now a subsidiary of Allergan/AbbVie), the system targets and freezes fat cells to temperatures that trigger their natural cellular death without damaging surrounding skin, nerves, or tissues.

System Overview & Core Components

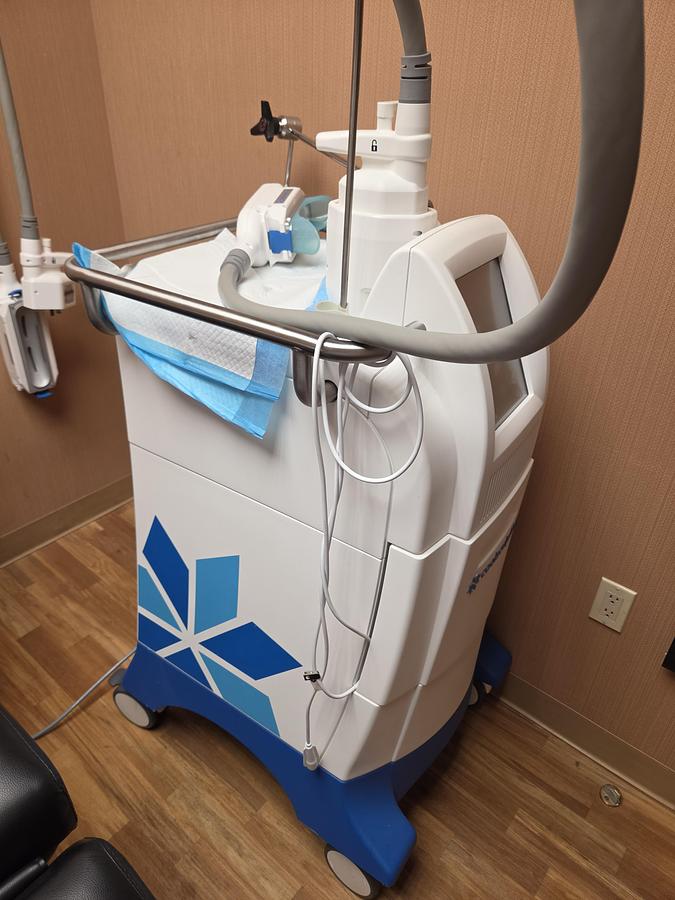

The classic Breeze platform is a modular, cart-mounted workstation consisting of several key operational elements:

• Breeze Base Module & Control Unit: The central hardware powerhouse that regulates power, system safety checks, and the user interface screen.
• Thermoelectric Cooling Engine: Delivers precisely controlled cooling and heating profiles tailored to specific anatomical areas.
• Feedback Sensors: Built-in skin surface sensors that continuously monitor the treatment zone, dynamically adjusting heat flux to prevent frostbite or thermal injury.
• Natural Elimination: Over the next 2 to 4 months, the crystallized, dead fat cells are metabolized and permanently processed out of the body through the lymphatic system. This typically yields a 20% to 25% fat layer reduction per treated area. [1, 2, 3]


Compatible Applicators & Treatment Areas

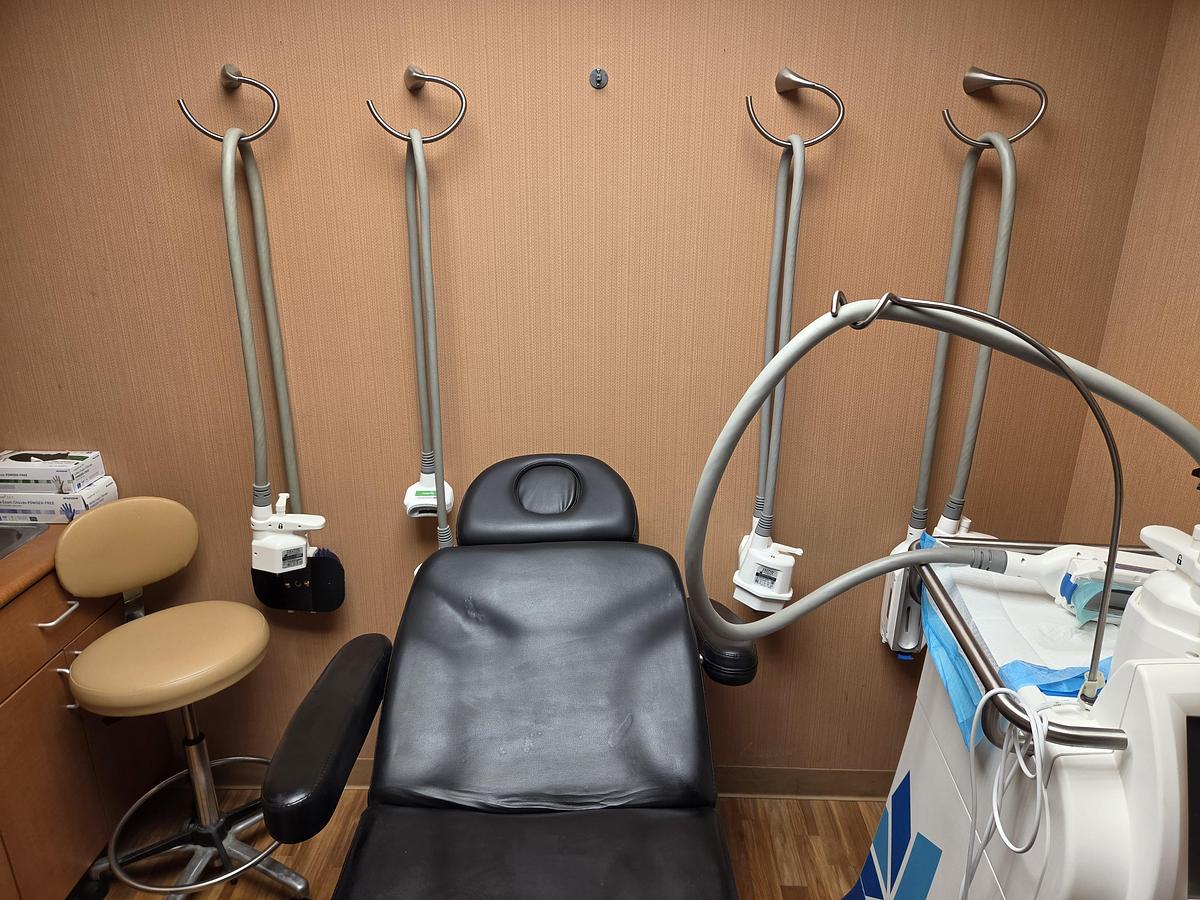

The versatility of the Breeze machine relies entirely on its interchangeable handpieces, which are tailored to different body contours:

• CoolMini: Designed for small areas like submental fat (double chin), armpits, and above the knees.
• CoolAdvantage (Standard / Petite): Features an updated cup design for a shorter, more comfortable 35-minute cycle on the abdomen, flanks (love handles), and upper arms.
• CoolSmooth Pro: A non-vacuum, flat surface applicator explicitly engineered for dense, outer thigh fat.
• CoolMax: The largest vacuum cup, used to debulk massive, squeezable sections of lower abdominal fat.


Secondary Market and Consumables

Because the Breeze system is a legacy platform (superseded by systems like the CoolSculpting Elite), it is highly active on medical equipment resale markets.

• The "CoolCard" System: ZELTIQ systems operate on a pay-per-use token mechanism. To launch a treatment cycle, the machine requires a consumable CoolCard loaded with cycle credits, which operators must factor into ongoing clinical overhead costs.

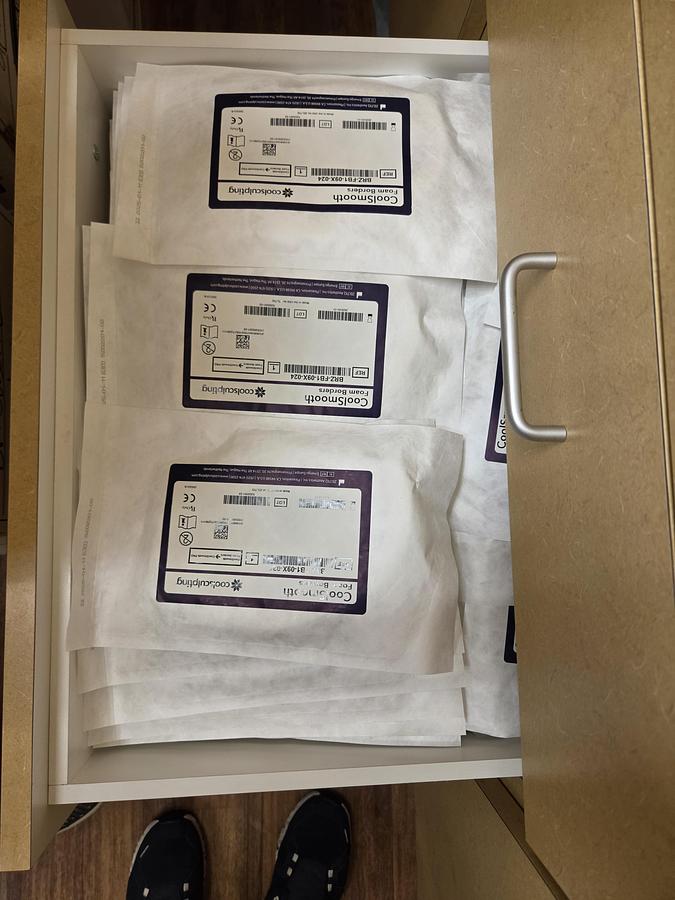

• Essential Accessories: Proper clinical usage requires single-use consumables including gelpads (thermal barriers), liners, and gel traps to protect the hardware from liquid suction.

Accessories Included:

Patient Belts

(5) Applicators

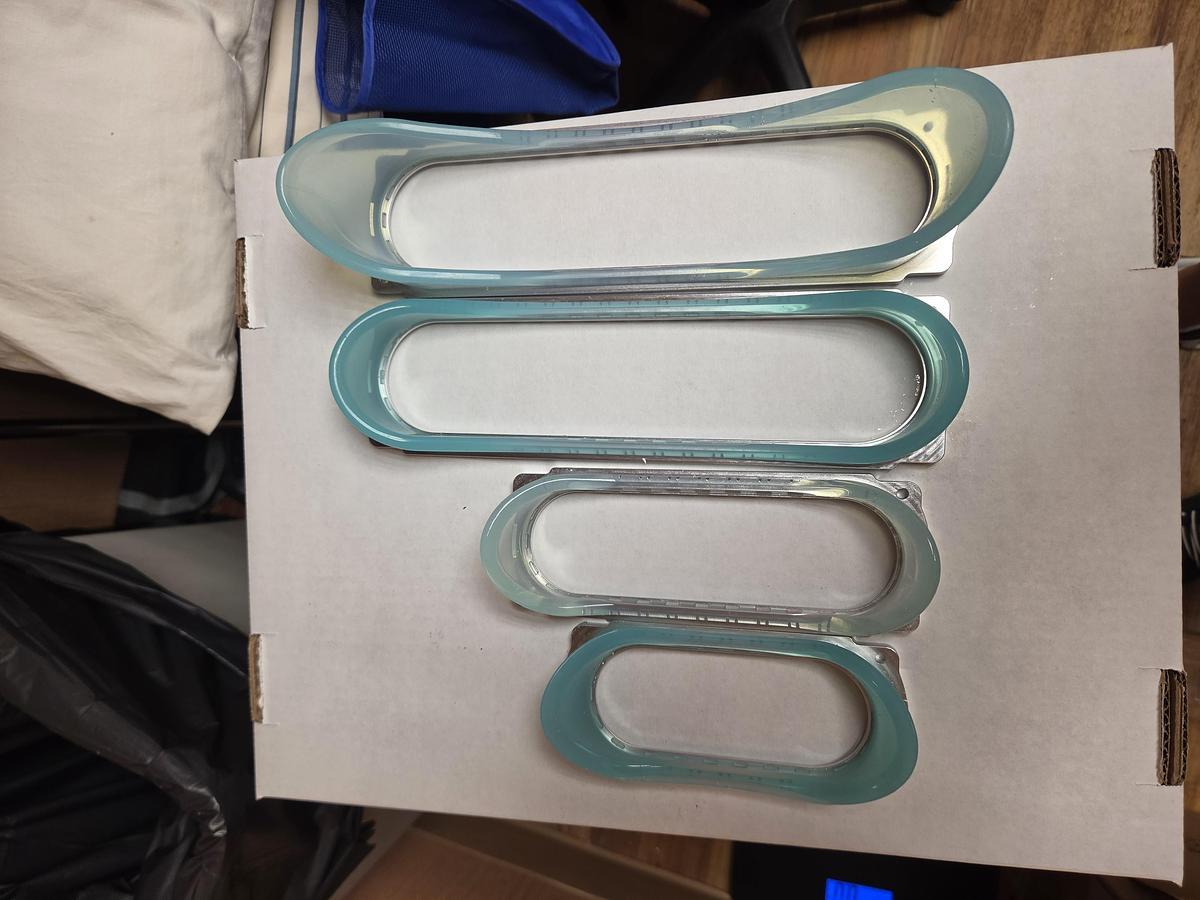

Applicator Gaskets

Treatment Cards

Gel Traps

Support Arm

Power Cord
